Troubleshooting And Maintenance Of Floor Tile LED Display


As an important part of modern urban landscapes and commercial displays, floor LED screens are favored for their unique visual effects and wide range of application scenarios. However, any equipment will inevitably malfunction during use.

This article will discuss the common faults of floor LED screen and their repair methods. Let’s take a look at them together.

1. Common faults of LED floor tile screens

floor LED screens, as a special LED display device, are widely used in various large-scale events and commercial displays. Due to their special installation method and usage environment, floor LED screens have some common faults. For example:

1). Uneven display

  • Cause of the problem:

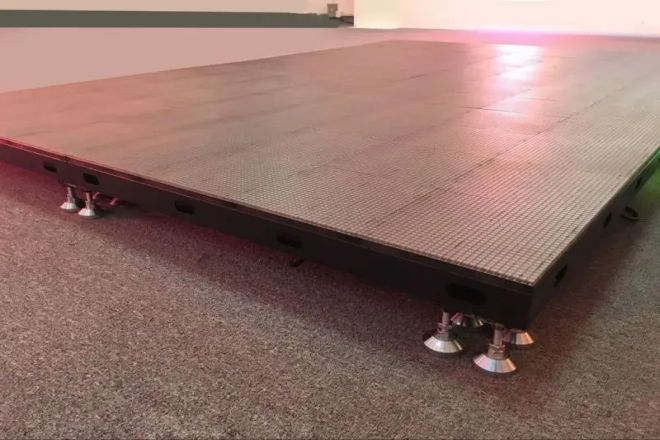

The uneven display of floor LED screens usually results from improper ground handling during installation or uneven load-bearing distribution between floor tile screens.

Small unevenness and cracks on the ground, or failure to ensure that each floor tile screen is evenly stressed during installation, will cause unevenness on the surface of the floor LED screen. In addition, long-term use and load-bearing may also cause the floor tile screen to sink or deform, further exacerbating the problem of unevenness.

  • Fault conditions:

When the floor LED screen displays an uneven display, the audience will obviously feel visual discomfort. Images or text may appear distorted, misaligned, or even broken. This uneven display not only destroys the overall visual effect but may also cause dizziness or discomfort to the audience.

In addition, long-term uneven displays may also have a negative impact on the life of the floor LED screen and accelerate its damage and aging.

2). Waterproof and dustproof issues

  • Cause of the problem:

floor LED screens are usually installed outdoors or indoors with high traffic, which makes their waterproof and dustproof performance particularly important. If waterproof and dustproof measures are not in place, the floor tile screen will be easily affected by the external environment.

Moisture and dust may enter the interior through the gaps or interfaces of the floor tile screen, causing damage to circuits and components.

  • Fault conditions:

Waterproof and dustproof problems may cause various failures of floor tile screens. First of all, moisture entering the interior of the floor LED screen may cause a short circuit in the circuit, causing various failures, such as flickering and failure to boot.

Secondly, dust may cover the surface or inside of the floor LED screen, causing the display effect to decrease and even affecting the normal operation of the floor tile screen. In addition, long-term moisture and dust erosion may accelerate the aging and damage of the floor tile screen and shorten its service life.

3). Load-bearing issues

  • Cause of the problem:

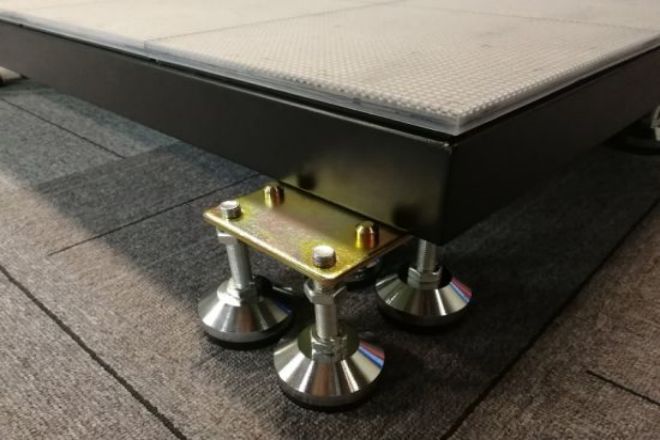

The load-bearing problem of floor LED screens is usually related to the unreasonable design of the load-bearing structure or the poor quality of materials. The design of the load-bearing structure needs to take into account the size and weight of the floor LED screen and the pressure it may bear from the flow of people and objects.

If the design is too simple or low-quality materials are used, the load-bearing structure cannot withstand the pressure and weight for a long time, causing the floor tile screen to sink, deform, or break.

  • Fault conditions:

Load-bearing problems can have serious consequences. Once the floor LED screen sinks or deforms, its display effect will be seriously affected and cannot even be used normally. What’s more serious is that if the load-bearing structure breaks, the floor tile screen may be completely damaged, posing a serious threat to people’s safety.

In addition, load-bearing problems may also cause other failures, such as circuit short circuits, damage, etc., further aggravating the damage to the floor LED screen.

4). Synchronicity problem

  • Cause of the problem:

The floor LED screen is composed of multiple units, and each unit needs to be synchronized with the control system to present coherent images and effects. If there are problems with synchronization between units, it may be due to inconsistent data transmission speeds, signal interference, or control system failures.

  • Fault conditions:

Synchronicity problems will cause images or text on the floor LED screen to be misaligned, flicker, or break. Viewers may see the content on the floor tile screen flickering or jumping, unable to form a clear and stable picture.

This synchronization problem not only affects the viewing experience but may also make viewers question the overall effect of the floor tile screen. In addition, long-term synchronization problems may also cause damage to the control system of the floor LED screen, further aggravating the occurrence of failures.

2. Maintenance method of LED floor tile screen

Regarding the above-mentioned maintenance methods of floor LED screens, we can further discuss the detection and treatment measures of each problem in detail:

1). Uneven display

  • Detection method:

Use a spirit level or laser rangefinder to inspect each unit of the floor LED screen one by one and record the accurate data of sinking or bulging.

Observe the display screen of the floor LED screenand pay attention to whether there is any obvious distortion or misalignment.

  • Approach:

Based on the inspection data, fine-tune the installation position of the floor LED screen and use professional adjustment tools to ensure that each unit achieves optimal flatness.

If there are problems with the ground itself, such as unevenness or settlement, you need to ask a professional ground treatment team to repair or level it.

2). Load-bearing issues

  • Detection method:

Use visual inspection methods to conduct a comprehensive visual inspection of the load-bearing structure to observe whether there are cracks, deformations, or looseness.

Use a gravity tester to conduct on-site testing of load-bearing structures to see whether their load-bearing capacity meets design requirements.

  • Approach:

Once problems with the load-bearing structure are discovered, the use of floor tile screens should be stopped immediately, and temporary support measures should be taken to prevent further damage.

Invite a professional maintenance team to repair or replace the load-bearing structure, ensuring the use of high-quality materials and advanced technology to ensure that the load-bearing capacity after repair meets or exceeds the original design standards.

3). Waterproof and dustproof issues

  • Detection method:

Use the visual inspection method to conduct a detailed inspection of the interfaces, gaps, and shells of the floor tile screens to see if there is any damage or aging.

Use a waterproof tester to test the waterproof performance of the floor tile screen to understand its waterproof level and waterproof effect.

  • Approach:

Components with problems found, such as damaged interfaces, gaps, or shells, should be replaced in time with components with excellent waterproof and dustproof properties.

Clean and maintain the floor tile screen regularly, use professional cleaners and tools to ensure that the surface is dust-free and water-stain-free, and check whether the waterproof and dustproof performance is maintained well.

4). Synchronicity issues

  • Detection method:

Observe the display effect of the floor tile screen, especially pay attention to the continuity and consistency of images or text to see if there are obvious dislocations, flickers, or breaks.

Check the signal transmission and data processing capabilities of the control system to understand whether it meets the requirements for synchronous display of floor tile screens.

  • Approach:

For synchronization issues, it may be necessary to adjust the parameter settings of the control system to optimize the data transmission speed and timing to ensure optimal synchronization between various units.

If the problem persists, you may need to consider replacing a higher-performance control system to meet the needs for simultaneous display of floor tile screens.

3. Measures to prevent malfunctions

Measures to prevent floor LED screen failure can include the following aspects:

  • Regular cleaning and maintenance:

Clean the surface of the floor LED screen regularly to remove dust and dirt to ensure a clear display. At the same time, check the various components of the floor tile screen, such as interfaces, gaps, and shells, to ensure that they are intact and free of aging.

  • Moisture-proof and waterproof:

Ensure that the floor tile screen takes appropriate moisture-proof and waterproof measures when working in a humid or humid environment. For example, a waterproof box can be set around the floor tile screen, or waterproof glue can be applied to the circuit board to prevent moisture intrusion and failure.

  • Proper use and operation:

Avoid placing heavy objects or making severe impacts on the floor tile screen to avoid damaging the load-bearing structure or screen. At the same time, when operating the floor LED screen, follow the correct operating steps and precautions to avoid malfunction caused by misoperation.

  • Regular inspections and tests:

Regularly conduct performance inspections and tests on floor LED screen, including flatness, load-bearing capacity, waterproof and dustproof performance, and synchronization. Through inspection and testing, potential problems can be discovered in time, and corresponding measures can be taken to repair them to avoid failures.

  • Training and guidance:

Provide necessary training and guidance for personnel who use and maintain floor tile screens so that they can understand the basic working principles, operating methods, and common fault-handling methods of ffloor LED screen. Through training and guidance, personnel’s operation level and maintenance capabilities can be improved, and failures caused by misoperation or improper use can be reduced.


The above is the entire content of this article. Do you understand clearly the maintenance and prevention of floor LED screen?

If you want to know more about LED displays, please get in touch with us!
