Rental LED Screen
A rental LED screen is an LED display used on stage to give the audience a clear view of what’s happening on stage can be magnified by even a single expression of an actor on the stage or an audience sitting in the last row. The LED screen is primarily used as a backdrop to play ambient video or to relay live feeds of the actor’s performance.
Quickly get 2021 New Price!
Quality not only means excellence but also reliability
Rental LED Screen
R1 Series is a rental LED screen that could use for both indoor and outdoor stage applications.
It is used for the concert stage, wedding stage, light stage, T-stage show, etc.
R1 Series is the right one to choose from if you need the high stable quality option.
Product Features
Pay your cost for the details
Cable-free Design

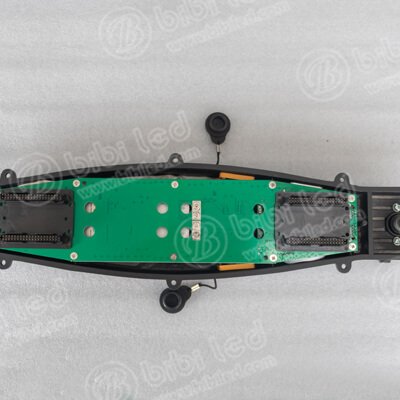

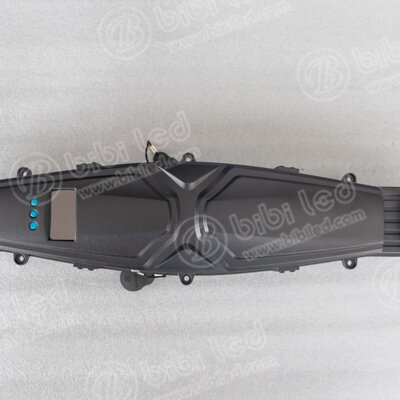

There is no cables connection between the LED module and the receiver card, which makes the signal transmission more stable

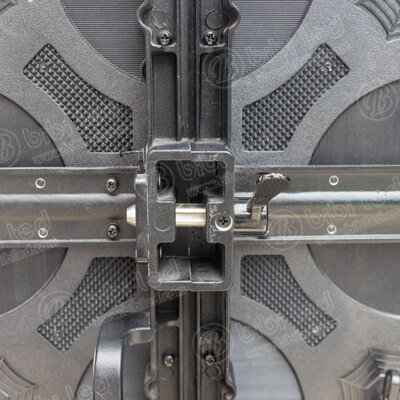

Fast Assemble

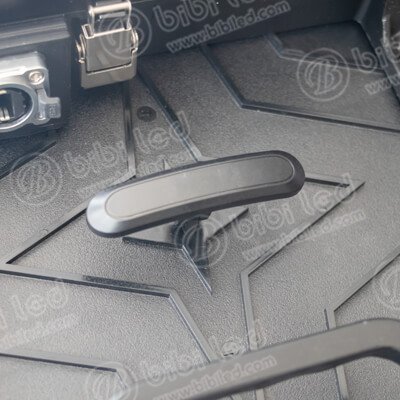

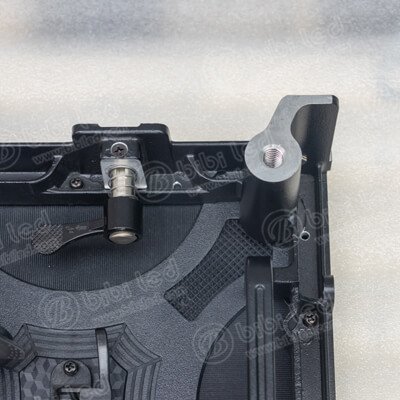

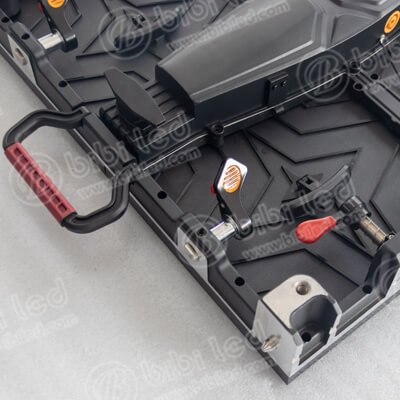

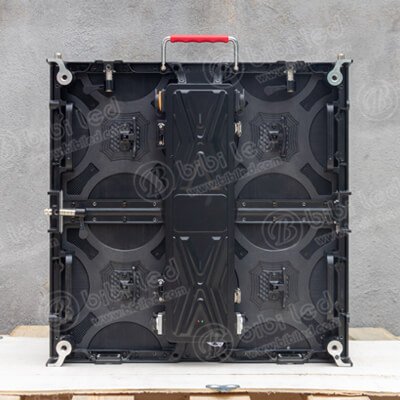

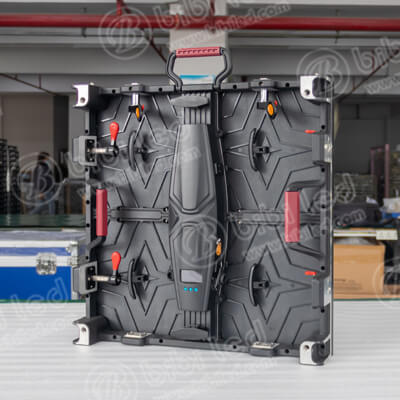

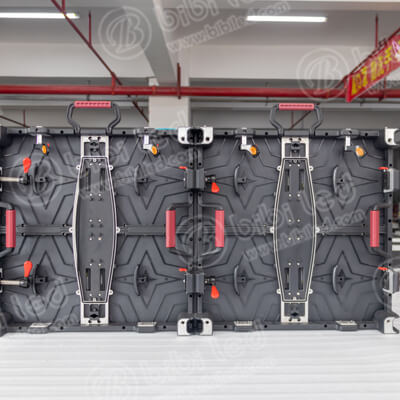

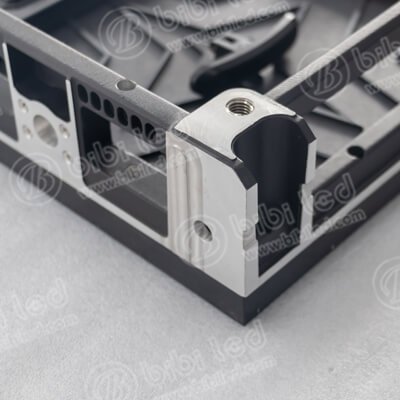

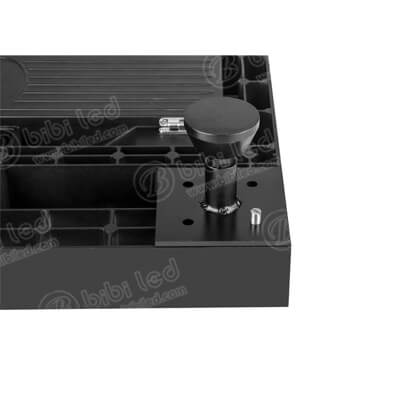

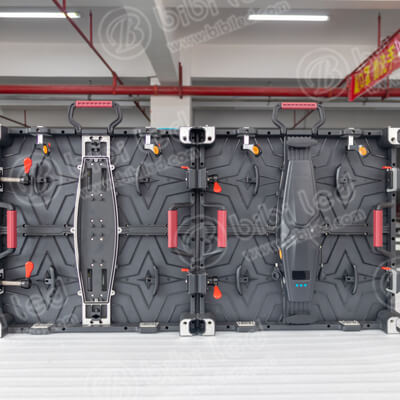

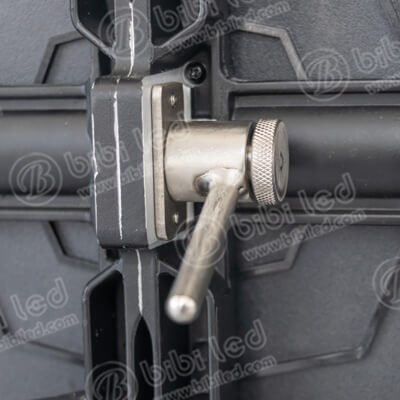

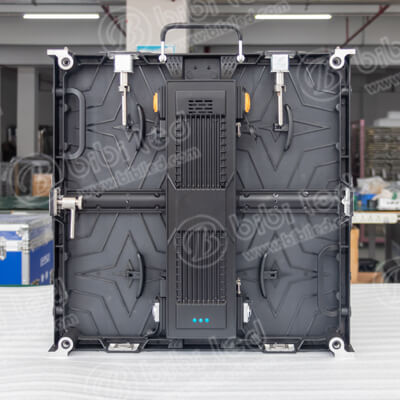

The die-casting aluminum cabinet with the fast lock design, R1 series is more easy and fast to assemble and disassemble
Ultra Light Cabinet
The cabinet is made of die-casting aluminum, it is only 30kg per square meter, easy for transportation and installation
High Precision

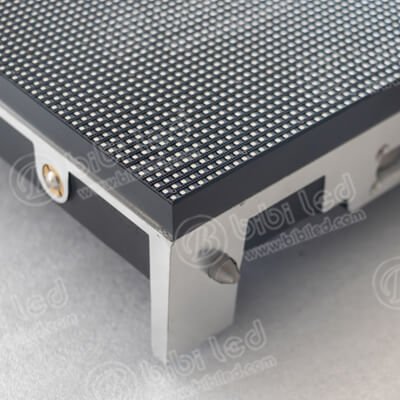

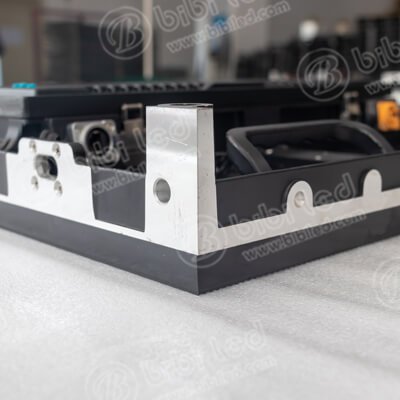

With high-end CNC machining on the cabinet, precision control of the R1 series within 0.1mm, perfect flatness
Friendly Tips: To ensure that you could make the correct solution for our R1 Series stage rental LED screen.
Please continue to read the following introduction and download our specifications.
Can’t find what you are looking for? Contact us.
Your email will be responded to within 1 business day.
Specifications
| ITEM | UNIT | P1.95 | P2.604 | P2.976 | P3.91 | P4.81 |
|---|---|---|---|---|---|---|
| Pixel pitch | mm | 1.95 | 2.604 | 2.976 | 3.91 | 4.81 |
| LED type | N/A | SMD 3 in 1 | ||||
| Pixel density | pixels/m2 | 262144 | 147456 | 112896 | 65536 | 43264 |
| Module size(WxH) | mm | 250×250 | ||||
| Module resolution | pixels | 128×128 | 96×96 | 84×84 | 64×64 | 52×52 |
| Cabinet size | mm | 500×500 | 500×500 | 500×500/ 500×1000 | ||
| Cabinet resolution | pixels | 256×256 | 192×192 | 168×168/ 168×336 | 128×128/ 128×256 | 104×104/ 104×208 |
| Driving method | N/A | 1/32 | 1/32 | 1/28 | 1/16 | 1/13 |
| Material | N/A | Die-casting aluminum | ||||
| Weight | kg/m2 | 30 | ||||
| Brightness | nits | 800 ~ 5500 | ||||
| Rrefresh rate | hz | ≥1920 | ||||
| Gray scale | bit | ≥14 | ||||
| Colour temperature | Deg.K | 3,200 ~ 9,300 | ||||
| Brightness control | N/A | 255 | ||||
| Contrast ratio | N/A | 4000:1 | ||||
| Video angle H | deg. | 140 | ||||
| Video angle V | deg. | 140 | ||||
| Input AC operation | volt | AC90~264 | ||||
| Power consumption(Max/Avg) | w/m2 | 800/250 | ||||
| Storage tem. | F/C | -4 ~ 140F/-20C ~ +60C | ||||
| Storage humidity | RH | 10%~85% | ||||
| Life time(50% brightness) | hour | 100,000 | ||||
| Input signal | N/A | DVI, HDMI, VGA, S-video, etc | ||||
