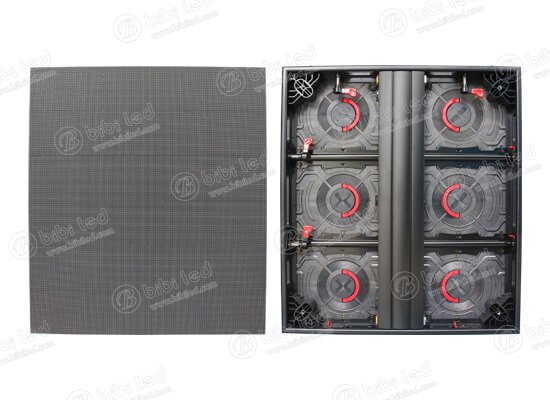

Front Maintenance LED Display
| Specifications | |
|---|---|
| Pixel Pitch(mm): | 6.67 / 8 / 10 |
| Brightness(nits): | Up to 5500 |
| Refresh Rate(Hz): | >1920 |
| Key Point: | Front service, wall mount installation, no need to make the maintenance space at the back |
Key Features
- Customized Cabinet Size.
- Steel/ Aluminum Cabinet.
- Front Service.
- SMD 3in1 Technology.
- Waterproof with IP68.
- Wide View Angle.
Outdoor Front Service LED Display
CF Series is an outdoor fixed LED display, but designs as front maintenance LED display.
It releases the regular heavy back maintenance installation structure.
CF Series is the right one to choose if it is hard to build the maintenance structure at the back of the outdoor LED screen.
Friendly Tips: To ensure the you could make the correct solution of our CF Serice Outdoor Front Service LED Screen.
Please continual to read the following introduction and download our speficitation.
Can’t find what you are looking for? Contact us.
Your email will be responed within 1 business day
Commercial LED Screen: The Ultimate Guide.
- March 2, 2020
So, we write an article about LED screen price.
It takes 15-20 minutes to finish reading;
After that, you will understand how does the LED screen price come.
However, due to the uneven prices in the market, it is not enough for everyone to understand the LED display, resulting in more and more people being pit.
So next, a professional Chinese LED display manufacturer will bring you an article about the price of LED display.
We will discuss the LED display price in detail through the following nine chapters.
- Chapter 1: The amount of the LED display product itself
- Chapter 2: Purchase cost price
- Chapter 3: Transportation costs
- Chapter 4: Cost of different product types
- Chapter 5: Installation costs
- Chapter 6: After-sales expenses
- Chapter 7: Cost of use
- Chapter 8: How to get the price quickly
- Chapter 9: Professional Chinese LED display manufacturer recommendation
Chapter 1: The Price of LED Display Products.
1. LED display size
The first step in determining the price of the LED display is to measure the size and size of the LED display you need to buy first.
Usually, a tape measure or a professional measuring tool is shown below.
And the unit of measurement is millimeters or meters.
The price of the LED display is generally calculated according to the square meter.
It can be calculated according to the following formula.
W = Width, H = Height
Then it is W x H x SQM Price = LED display price.
Of course, if you buy an LED display, you will also need to buy corresponding accessories, such as control systems, packaging, spare parts, etc.
Then the total price of the LED display is equal to the cost of the LED display + the price of the LED display accessories.
If your LED display is installed in the air, there is no specific size.
Then you can provide the following information to the LED display factory:
1). Take some clear pictures and videos of the installation position of the LED display
2). Tell me what the purpose of this LED display is?
3). What is the viewing distance of your target audience?
Therefore, a professional LED display factory will give you reasonable size recommendations.
2. LED pixel pitch
The closer the pixel pitch is, the more LED lamp beads there are in a flat square so that the price will be higher.
How you choose the pitch depends on the closest viewing distance you are using and the pixel resolution you want.
For example, when the same size LED display screen, the closer the distance, the higher the resolution under the same size can display, the clearer the displayed content.
For example, we see the below video on the lower surface, the pitch PH2.6mm, and PH3.91mm, the same size.
3. Indoor and outdoor applications
We will use two points to determine how to choose an indoor or outdoor LED screen.
1). Do I need to be waterproof?
2). Do you need high brightness (LED display face the outdoor environment)
You need to meet the demand of one of them;
Then you must choose an outdoor LED display.
The price of an outdoor LED display will be higher than the indoor LED display.
Because the outdoor LED display is designed to ensure can be used generally in rainy weather and requires.
You can still clearly see the contents of the LED display face direct in the sun.
4. Selection of raw materials
Here we mainly talk about four main materials: LED lamp beads, IC, power supply, cables.
1).LED lamp beads
At present, the best LED lamp bead produced in China is Nationstar.
The price is also the most expensive in the Chinese market.
The second is the Kinglight LED lamp beads.
If the budget is enough, choose Nationastar LED lamp beads.
If the budget is limited, choose Kinglight LED lamp beads.
Here is a blog post about how to choose LED lamp beads?
2). Driving IC Chip
The quality of the LED display driver IC will directly affect the display effect and durability of the LED display.
The role of the LED chip is to ensure the display stability of the LED display, eliminate the LED flicker phenomenon, and provide a high-quality content display.
The LED chip will also directly affect the refresh rate of the LED display.
At present, there are more ICs used in the market, such as Macroblock, ICN, FM.
Among them, the quality of the Macroblock is the best and most expensive.
3). Power supply
At present, the most recognized power supply for the quality of LED displays is Meanwell Power Supply.
Meanwell can be sold as the second hand even after two years of use.
So you can imagine how reliable the quality of this power supply is.
Of course, if the cost is taken into consideration, we will recommend the power supply of G-energy, which is relatively stable in quality.
There will be hundreds of different power supply brands on the market.
When you have n’t heard of that power supply, you must talk to the salesperson more, and understand more information about this power supply.
Because the power supply is not only used to power the LED display, but also the main control of the security of the LED display.
The picture below is an inferior power supply used in a shopping mall, which caused a fire.
4). The cables.
The cable is the same as the power supply, in addition to transmitting power to the LED display, it also adds security.
The following video will show you how to choose the right cables for your LED screen.
If you need more solutions, you can send an email to our mailbox and leave your question [email protected].
5. Front and back maintenance
Regarding whether the LED display is indoor or outdoor, for the LED display itself, front maintenance will be more expensive.
At this time, you need to consider whether it is possible to do an 800mm maintenance space on the back of the LED screen at the installation site.
If it can be done, then we recommend using back maintenance.
However, if the installation structure will affect the aesthetics and the installation location is within 10mm, it is recommended to use the front maintained.
One thing to note here is that if you do front maintenance, you will save more on the cost of the installation structure.
So when the cost of the structure plus the screen is not much different, we will further recommend the front maintenance LED display.
Of course, it is also necessary to make suggestions based on actual conditions, and you can communicate with professional LED display suppliers
Chapter 2: The Price of Buying an LED Display.
In this chapter, we mainly talk about the price difference of purchasing LED display screens from different places.
The following is our analysis for you:
- Buy from local dealer
- Buy from China
Summary:
If you are more concerned about after-sales service and do not care about the price, then you are recommended to choose a local dealer.
If your budget is limited and you can do it by yourself, and you can learn from it.
We suggest you buy it directly from Chinese LED screen manufacturers.
Of course, even if you buy it from a Chinese LED display factory, professional technical support is still in place.
But it is only about installation suggestions and software support.
Just the hardware installation will be more complicated.
