Flexible led screen

Get the 2019 NEW Price NOW!

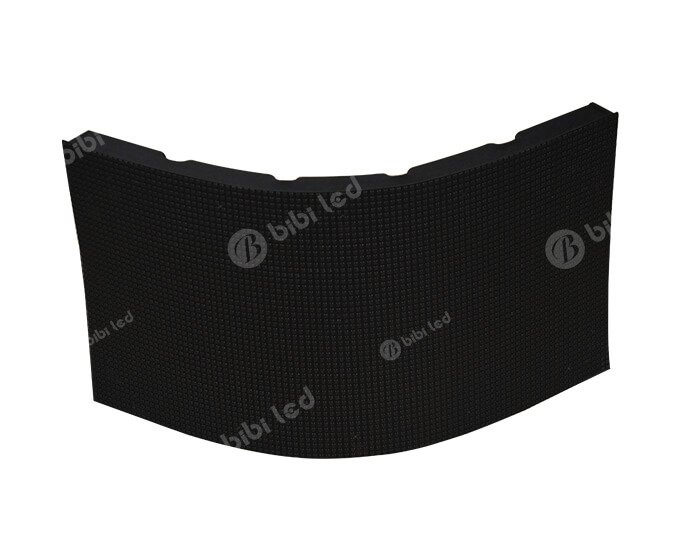

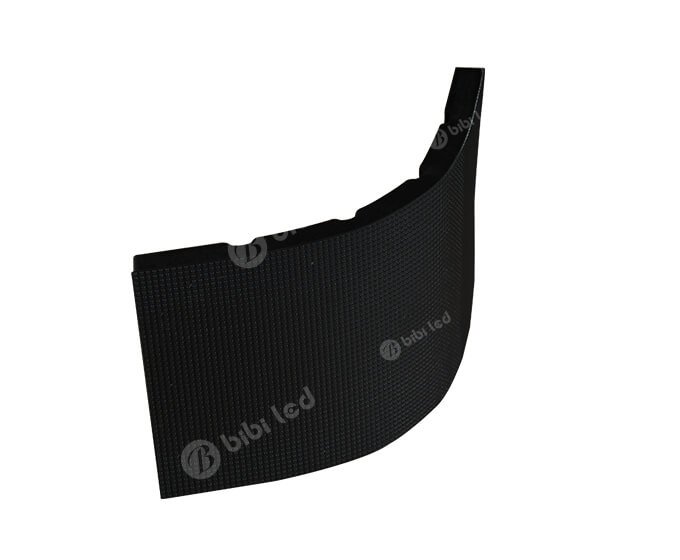

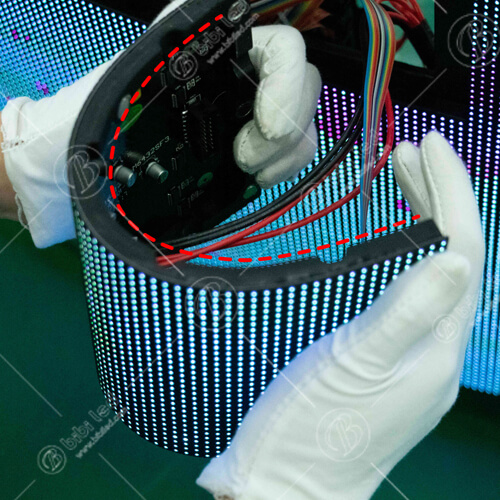

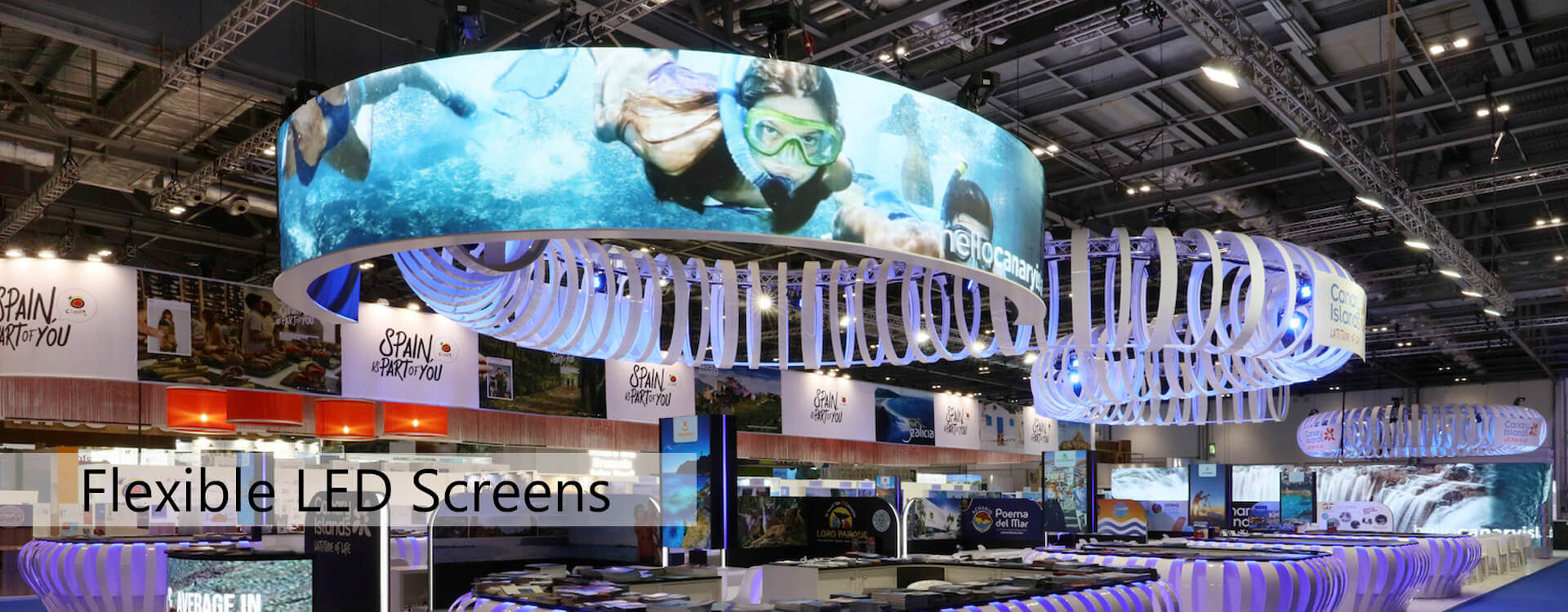

Flexible LED screens

Key features

1. Pixel pitch: 2.5/ 3/ 4/ 5.

2. Bend angle: 180 Degrees.

3. Maintenance way: Front service.

4. Packing way: Flight Case packing.

5. Material: Flexible silicone frame

6. Application: Super market, Airport, hotel lobby, etc.

Recently done project

Configuration

1. Pixel pitch: 2.5mm.

2. Screen Size: 4.8m(W) x 0.6m(H).

3. Screen pixels: 1920(W) x 240(H)

4. Destination: The UK.

5. Total cost: $11,000.

6. Application: Hotel lobby.

Flexible LED Screens Parameters

ITEMUNITF2.5F3F4F5
LED TypeN/ASMD1010SMD1515SMD2121SMD2121
Pixel Pitchmm2.5345
Ingress ProtectionIP31, not water-proof, indoor installation only
Viewing Distancein/meter98/2.5118/3155/4195/5
Driving WayIPConstant Current
Driving TypeScan1/241/301/161/16

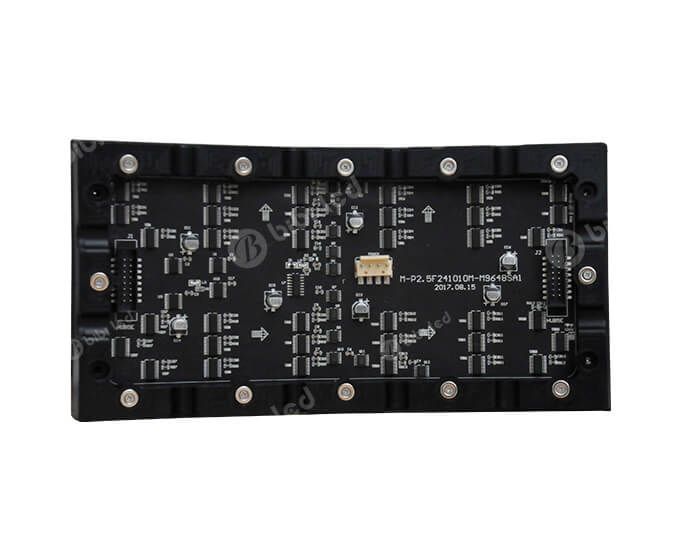

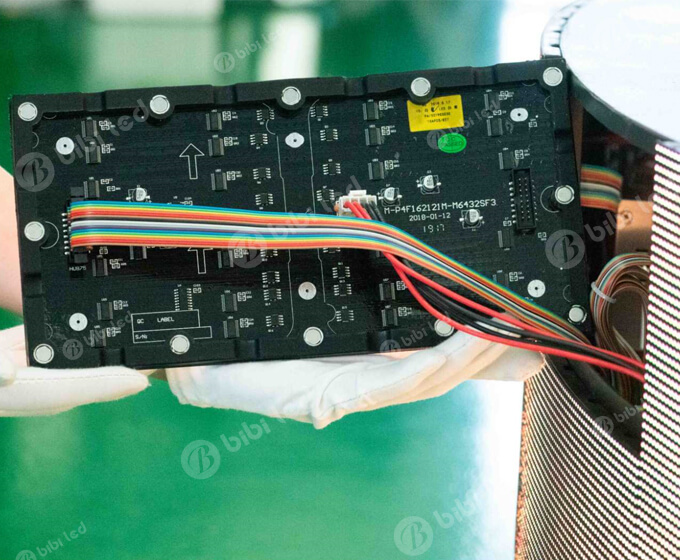

Module Sizemm240×120240×120256×128320x160m
Module PixelPixel96×4880×4064×3264×32
Working VoltageDC5V±10%
Module Current(MAX)A≈4A
Module ConsumptionW≈20W
Power PortN/AVH4
Data PortWHUB75D(IDC16)
Module MaintenanceN/AFront / back
BrightnessNits800-1000
Refresh rateHz1920/3840
Digital ProcessingBit14
Gray ScaleLevel16384
ColorsMillion687
Color TemperatureDeg.K3,200-9,300 Adjustable
Brightness ControlN/A255
Contrast RatioN/A4000:1
Viewing Angle HDeg.140
Viewing Angle VDeg.140
AC SperationVAC90~264
Storage Tem.F/C-4 ~ 140F/-20C ~ +60C
Storage HumidityRH10% ~ 85%
Operating Tem.F/C-4F ~ 140F/-20C ~ +60
Operating HumidityRH10% ~ 85%
Lift time(50% brightness)Hour100,000
Installation TypeN/AWall mounted
Control ModeN/AVideo Sync
Bright/Color CorrectionN/ASupport
Video EffectN/A2K, 4K

Flexible LED screens: The Ultimate Guide

By definition, a flexible LED display screen is an electronic visual display that is flexible in nature.

Research and development into this type of LED screen started in the late 2000s.

Its main goal was to implement this kind of technology in mobile devices.

This technology though, has recently made an appearance to a moderate extent, in consumer television units as well.

Chapter 1: What is a flexible LED screen?

Compared to the more prevalent traditional flat screen displays, a this has more things to offer. Flexible LED screens are more suitable for stage, exhibition hall, and counter design.

Its usually characteristics are having a high-definition picture that is both soft and strong.

And just like a normal LED screen, the flexible version can also be used with a synchronous and asynchronous release system.

Obviously, both of them can display images. The only difference is, a flexible led video wall will allow you to place in areas where you need to bend them.

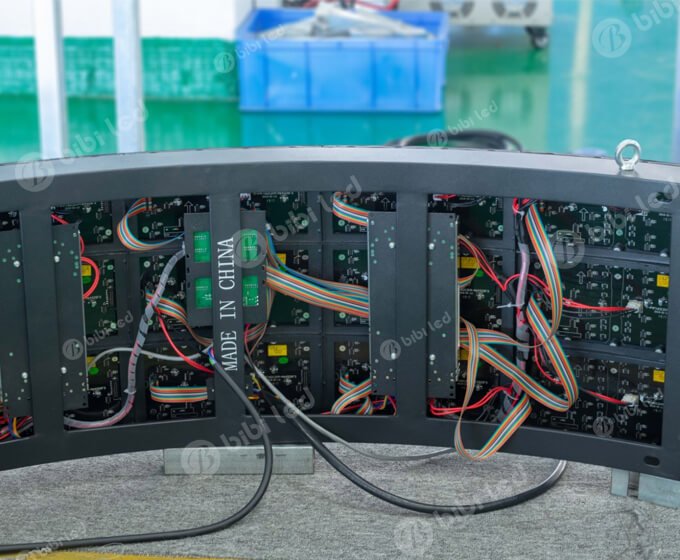

They do both share the same easy installation because they can be installed by modules. The only difference is, it is easy to move.flexible led stage screens.

But what really sets the it apart from the normal LED screen is its ability to have a special shape. Usually, you will normally see a spherical design.

This is the more common shape that flexible LED screens are formed.

In the past couple of years, there has been a growing interest from a lot of consumer electronics manufacturers to apply this display technology in e-readers, mobile phones and other consumer electronics.

Samsung has even recently developed a smartphone that you flip or fold. Flexible LED screen is used in that kind of smartphone. That’s how versatile the technology is.

Chapter 2: Where can we use a flexible LED screen?

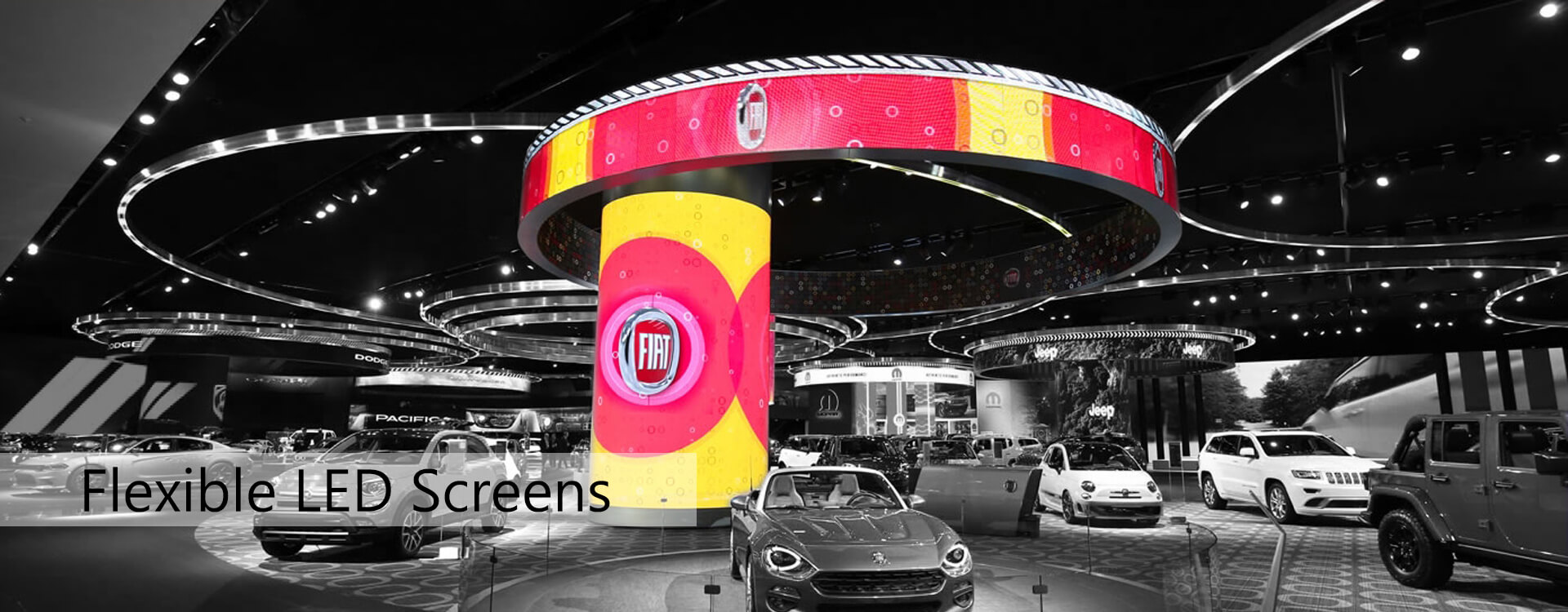

As you can probably tell, this type of display screen has plenty of applications. As mentioned above, flexible LED screens are normally used in stages, exhibition halls, and counters.

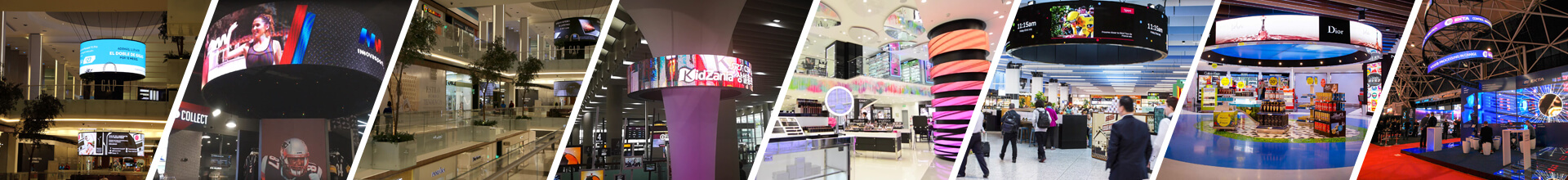

They usually serve as the main display device. But these display devices are also being used in shopping malls, hotels, club halls, airports, train stations and basically any place where they need an LED screen that has to be curved, bent or formed into a different shape that isn’t the usual rectangular one from a normal LED screen.

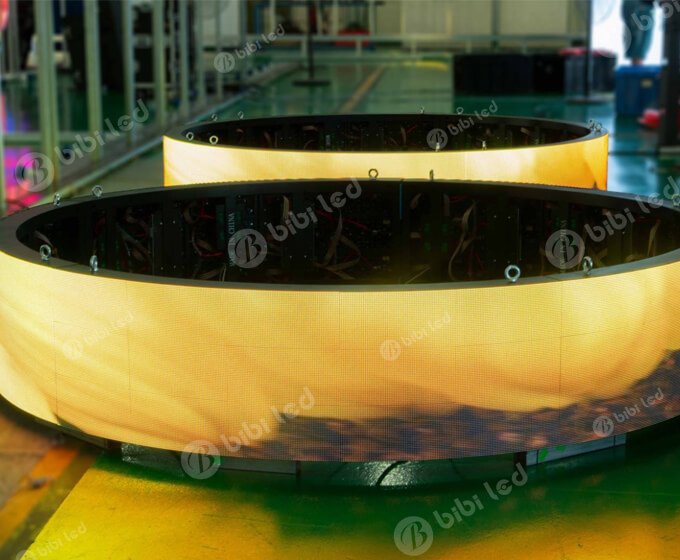

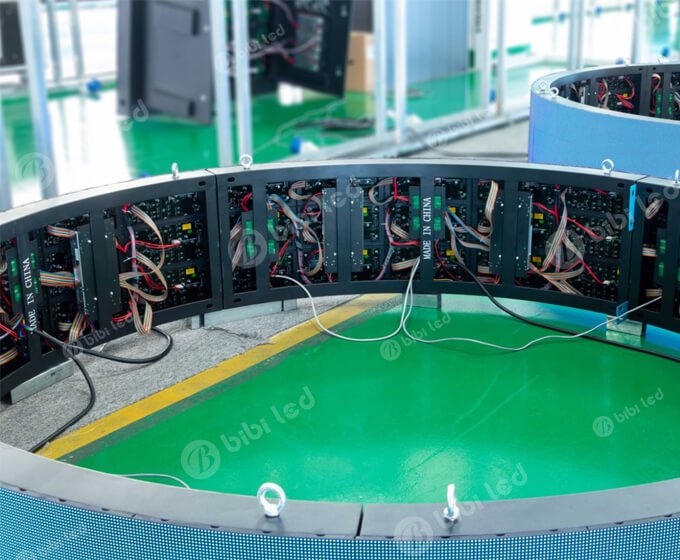

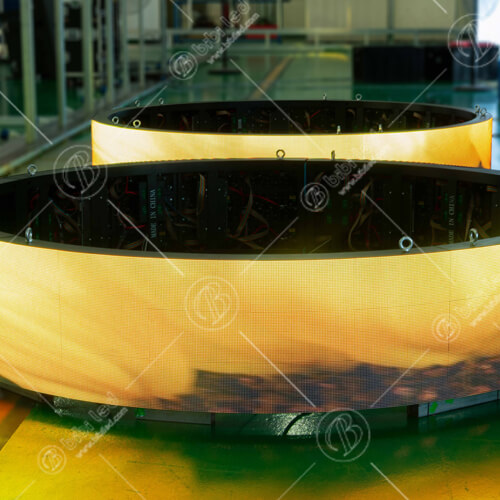

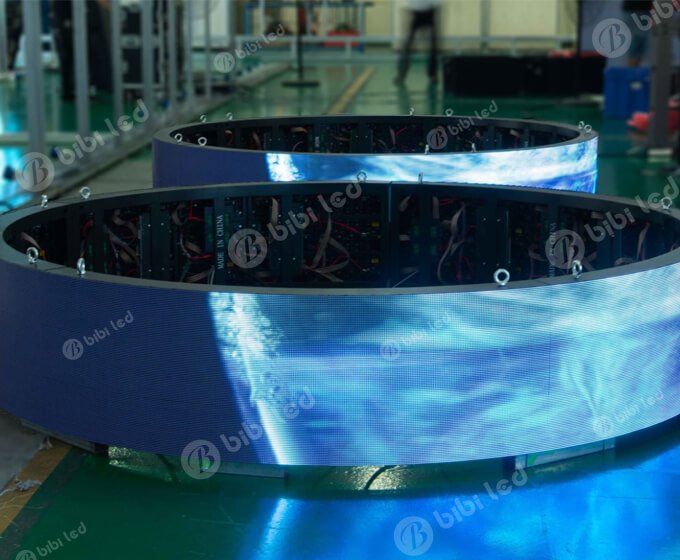

Since an LED display board is made of soft PCB and rubber material, molding them into a circular design is the most common option. It gives a wrap around effect to the display.

You usually see this in shopping malls where they are promoting new products. They are also usually mounted in columns of establishments that require display devices.

Chapter 3: Advantages and Disadvantages of Flexible LED Screens

Flexible LED screens do have their advantages and disadvantages just like any other display screen on the market. Let’s take look at what this type of LED display brings to the table.

Advantages:

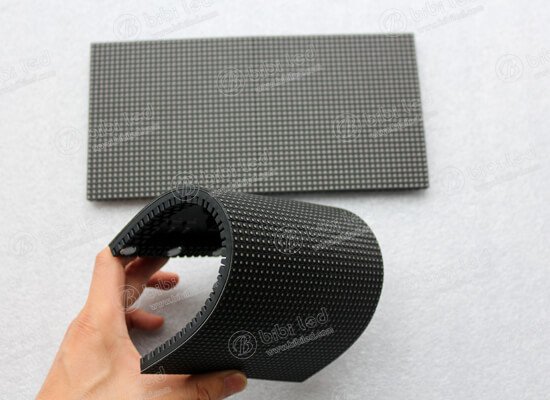

Flexibility – Obviously, this is the first advantage that comes to mind. The technology used for this type of display screen is geared towards providing utmost flexibility. You can bend it, or fold it and it will not break.

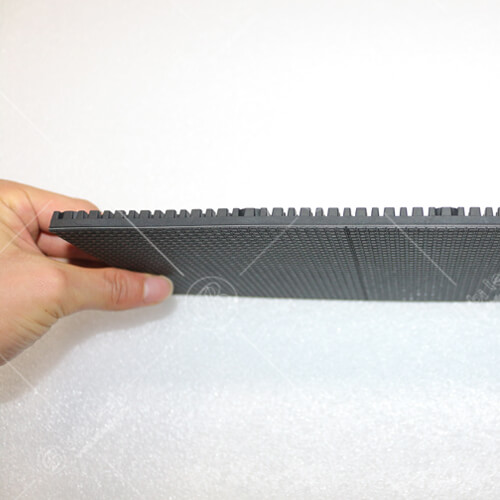

Very light – Since it is made of oft PCB and rubber material, then naturally, it won’t be on the heavy side of things. They are also very thin display devices, which adds to their lightweight property..

High density – You might think that flexible LED screens are fragile and vulnerable to breaks or cracks. Well, you can’t be more wrong.

These flexible display screens will never break even if you bend or fold them due to their high density. Afterall, they were designed to do those things specifically. This is the good thing about using this type of LED display. You won’t have any issues when it comes to durability and performance.

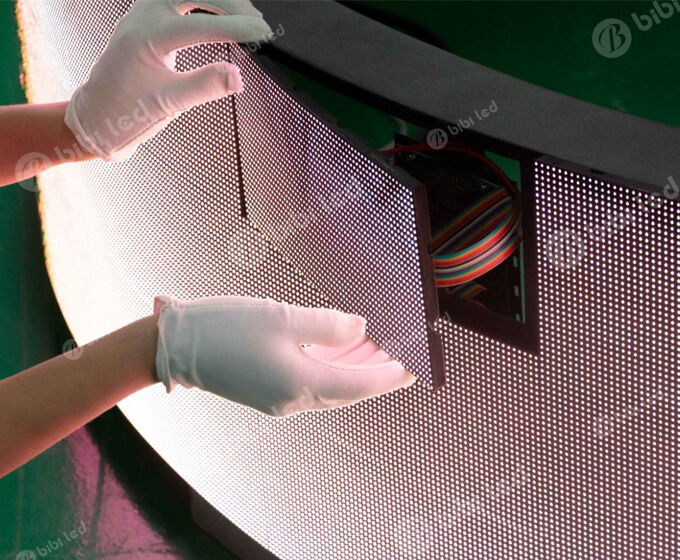

Easy installation – And since these display screens are very light, it doesn’t take a lot of hands to install it. Plus, they are designed to be easily assembled and attached. Their locking mechanisms don’t require any tools.

Very reliable – As a sum of their advantages, this type of LED screen is one of the most reliable LED screens on the market today.

Disadvantages:

Limited colour palette – In the era of high-definition technology, a full colour palette has become very important.

In flexible LED screens, the range of colours is still a bit muted compared to existing HD technology. But, there are advances being made to remedy this issue.

Slow frame rates – Another common issue with flexible LED screens is the slow frame rate. It’s still not fast enough to cope with devices like a normal LED screen.

High cost – Due to the difference of materials being used, it is much more expensive than a normal LED screen.

Requires a high-reliability test method – Since these screens will be folded or bent, they require a more special way to test their reliability. Most manufacturers do however, provide their own reliability test for this.

Chapter 4: How to verify the best quality flexible LED screen

When you are in the market for a flexible led video wall, of course you need to get the best best one. That is to ensure that you made the right investment and not waste your money.

So to be able to find the best quality flexible led panel, you need to know what to look for. Here are a few steps to follow.

Value for money – First, you really need to check the price. This is basically the best indicator whether or not you are getting a quality flexible screen.

You see, the price of a product is usually based on the materials it is made of. And as you probably already know, the more reliable and better performing materials are the more expensive ones.

So naturally, if you are going to use more expensive materials, this will drive the price higher. The tradeoff though, is a better performing foldable led screen.

On the other hand, if it is a less expensive flexible led panel, you will probably get one that is made of cheaper materials and cheaper materials always tend to have specific issues that will lead to performance issues of flexible LED screens.

The logic here is, get a flexible LED wall that has a believable price because they perform much better and you will be able to save more money in the long run.

Checking specifications – Another thing you need to do before you buy a flexible LED wall is to check the specs. See what this kind of display screen has to offer.

The most common specs you need to watch out for are the flatness, brightness, white balance effect and maximum bending angle.

Flatness will dictate clarity of the displayed images. Brightness will also factor in with the overall image quality.

The white balance effect is mainly for color accuracy and the maximum bending angle is well, for the maximum angle allowed for bending the foldable LED screen before it breaks.

Verify where the raw materials come from – This is another way to check the quality of a flexible LED panel. You need to familiarize which manufacturers produce the best parts.

Here’s a list by raw materials. We’ve listed them according to the tier quality. This can serve as your guide.

Material 1: LEDs

World class level: Nichia, Cree, Mekale

Top quality level: Nationstar, (this is what Bibi Led uses)

Second quality level brand: Kinglight, Kn-light Average

Material 2: Driving IC

Top quality brand: Macroblock (this is what Bibi Led uses)

Second quality level brand: ICN

Average quality level: FM, Sum

Material 3 Power supply

Top quality brand: Meanwell, Greatwall (this is what Bibi Led uses)

Second quality level brand: G-energy, Chuanglian, Newstar

So before you buy a foldable LED screen, you can inquire with the manufacturer and ask where they got the raw materials from.

Then, just refer to the list above to see if they are any good. Fortunately, these are all part of our process.

We at BIBI LED always adhere to stability. We believe that by producing stable flexible LED products, we ensure that the needs of the consumer will be be met. It is also a guarantee that the consumer will always get high quality products from us.

Chapter 5: BiBi LED Flexible LED screens Case study

Bibiled has delivery flexible LED screen to more than 20 clients all around the world, If you have a project need flexible LED screen you can directly contact bibi led.

bibi led has done a lot of flexible LED screen module cases and programs overseas.

FAQ1: What is the delivery time of the flexible LED panel display ?

The delivery time of the soft screen is generally 5-7 working days longer than the normal LED display screen.

Because the cabinet structure needs special customization, the PCB board of the module also needs special customization.

The delivery time of conventional LED displays is generally 12-15 working days. We must confirm that the quality is completely ok before we can deliver the goods to our customers who trust us.
