LED Display Connection Guide


LED display screens are widely used in modern life, whether they are commercial advertisements, event displays, home theaters, or game entertainment. In order to help users better understand and operate LED displays, this guide will introduce in detail the connection methods of LED displays, as well as possible problems and solutions.

1. LED display connection steps

Connection steps for synchronous LED display:

1). Connect hardware devices

Data connection: According to the connection method you choose, use the corresponding data cable (such as HDMI, DisplayPort, VGA, or DVI) to connect the computer host and the LED display.

Power connection: Connect the power cord to the LED display and computer host.

2). Install control software

Install the graphics card driver: Insert the graphics card driver CD into the CD-ROM drive, and it will automatically enter the installation state. Please follow the prompts. Install DirectX8.1 first and then install the driver; finally, install the control panel.

Install control software: Install LED studio or other control software dedicated to playing and setting up large LED screens.

3). Configure control parameters

Set display parameters: Make necessary display settings on the computer host, such as resolution and screen expansion options.

Set control parameters: According to the control software of the LED display, set the control parameters to synchronize them with the LED display.

4). Test connection

Test the hardware connection: Make sure the computer host and LED display are both turned on and check whether the connection is firm.

Test the display effect: Test the display effect on the computer host. After confirmation, the LED display should be able to display normally.

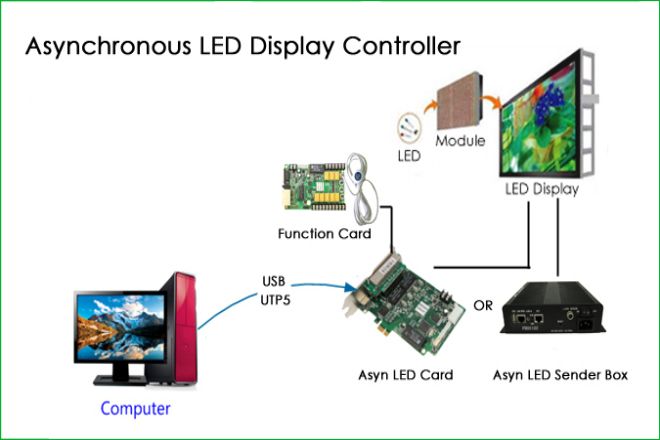

Asynchronous LED display connection steps:

1). Preparation

You need to make sure that you have installed the LED display driver correctly and that the connection between your computer and the LED display is stable.

Download and install the LED display driver provided by the supplier

Complete registration and login, connect your LED device

Set what you need to play, as well as the play order, time, etc.

2). Connect the control card

LED displays usually require a control card to manage the content stored in the display memory and control the brightness and color of the LED lights. The control card is usually connected to a computer so that the user can easily update the display.

3). Connect the power and signal cables

Connect the power cable and signal cable of the LED display to the corresponding interface. Make sure the connection is solid and reliable, and avoid lines that are too long or too short to avoid affecting signal transmission and power supply.

4). Install the screen module

Install the screen module of the LED display screen according to the predetermined shape and layout. Typically, screen modules are connected using connectors to ensure a secure connection.

5). Debugging and testing

After completing the installation, conduct debugging and testing to ensure that the LED display screen displays normally. Debugging includes adjusting brightness, color, contrast, and other parameters, as well as checking the splicing effect between screen modules.

6). Setup and upload settings

After setting it up, you can disconnect the controller from the computer, and the controller will automatically work according to your settings.

2. Frequently asked questions and solutions

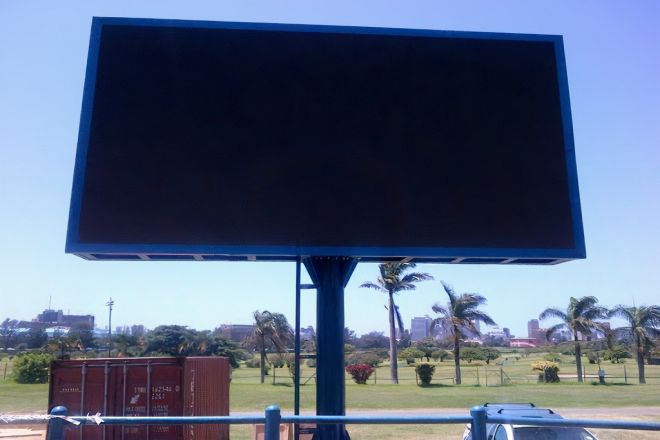

1). LED display shows no response after connecting

It may be caused by the following reasons:


  • Power problem: The display is not receiving power, or the power supply is damaged. Solution: Check whether the power supply is connected correctly and make sure the power supply is working properly.

  • Cable issues: This could be caused by a broken, loose, or improperly connected cable. Solution: Check all cables to make sure they are securely connected.

  • Controller issues: This may be due to a faulty controller or incorrect settings. Solution: Check whether the controller is working properly and set it up according to the instructions.

  • LED module problem: The LED module may be damaged or faulty. Solution: Check all LED modules to make sure they are working properly.

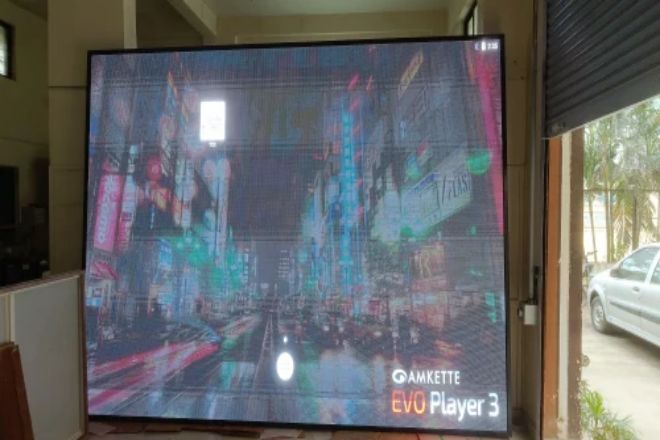

2). After the LED display is connected, the picture flickers and becomes unclear:

It may be caused by the following reasons:

  • Signal source problem: The signal source may have interference, or the signal is unstable. Solution: Try changing the signal source or using a more stable signal source cable.

  • Controller setting problem: It may be due to incorrect parameter settings of the controller. Solution: Check the settings of the controller and set them correctly according to the instructions.

  • Poor display grounding: The display may not have good ground, causing interference. Solution: Make sure the display is well grounded to reduce interference.

  • Driving current problem: It may be due to the driving current being too large or too small. Solution: Adjust the drive current according to the specifications of the LED module so that it is within a suitable range.

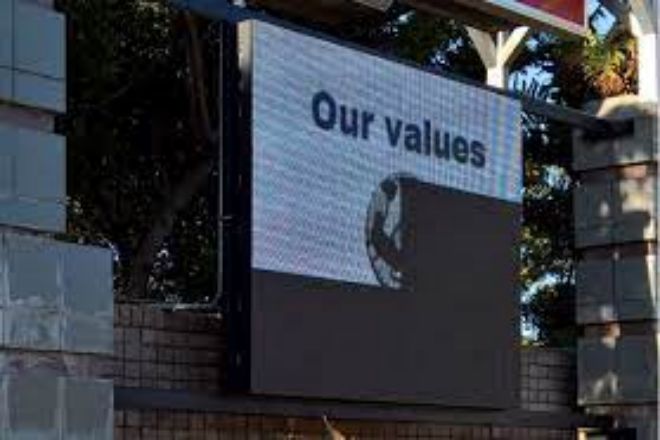

3). The LED display screen appears partially black

It may be caused by the following reasons:

  • Poor module connection: This may be due to poor connection or poor contact between LED modules. Solution: Check all cables to make sure they are securely connected.

  • Module damage: Some LED modules may be damaged or faulty. Solution: Check all LED modules and replace them if damaged.

  • Signal transmission issues: This may be due to interruptions or interference during signal transmission. Solution: Check the signal transmission cables to make sure they are working properly and without interference.

  • Controller setting issues: It may be due to incorrect or mismatched parameter settings for the controller. Solution: Please check the settings of the controller and follow the instructions for the correct settings.


Through this guide, you should have mastered the basic connection methods of LED displays, as well as possible problems and solutions.

Please note that different LED display brands and models may have different connection methods and setup steps, so be sure to refer to the specific instructions for the product you are using.

If any problem occurs during use, please contact professionals for repair in time.
