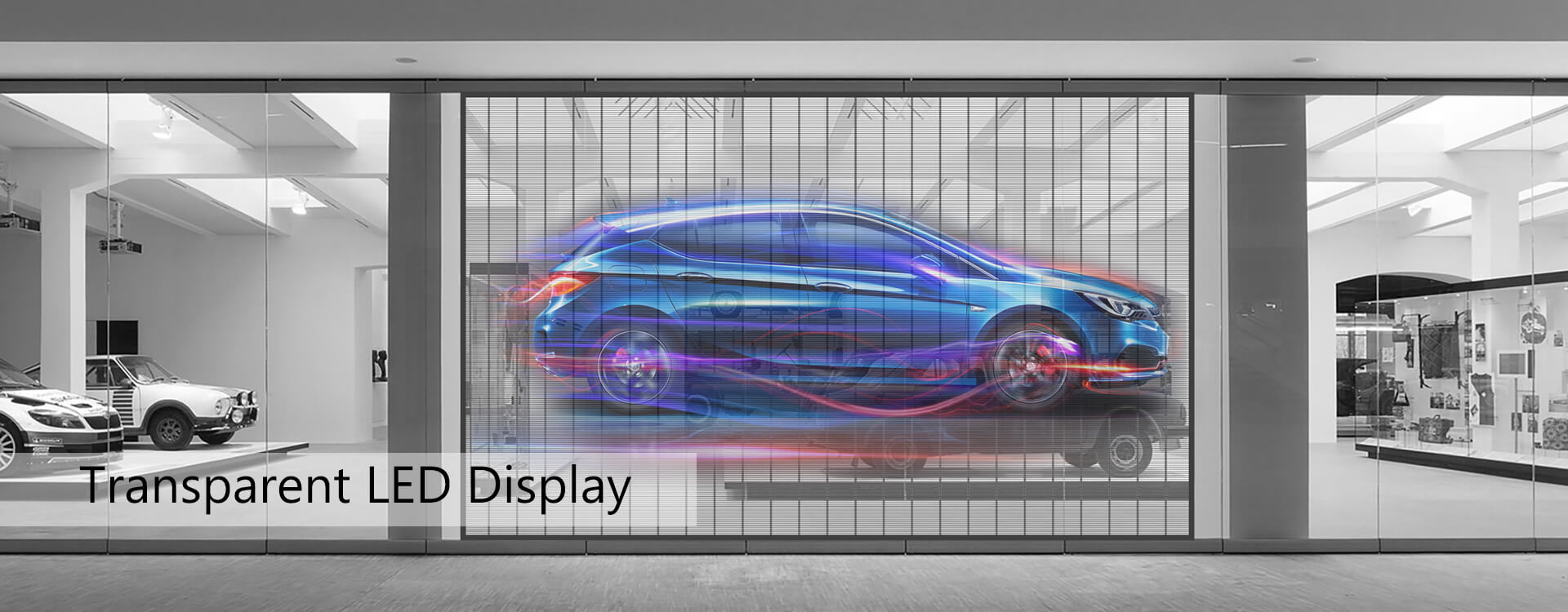

Transparent LED Screen

Get the 2019 NEW Price NOW!

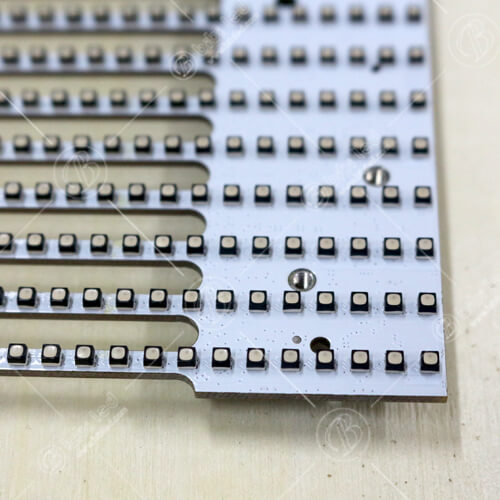

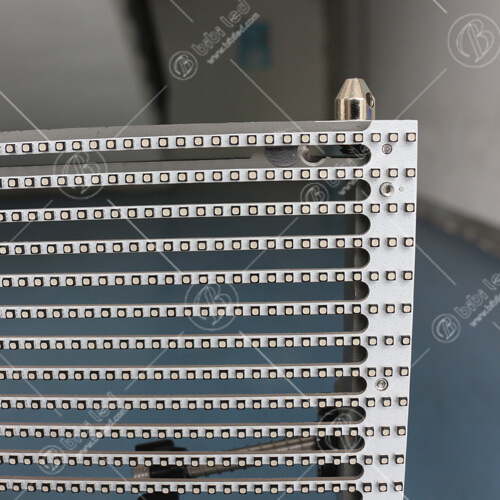

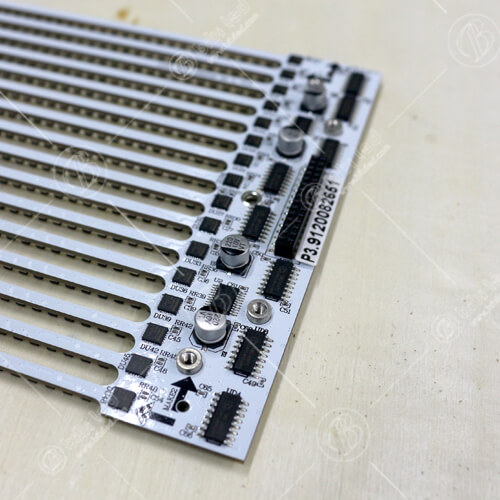

Transparent LED Display

Key features

1. Pixel pitch(mm): 3.91×7.8/ 5.2×10.4/ 7.8×7.8/ 10.4×10.4.

2. Transparency rate: 70 ~ 80%.

3. Installation environment: Indoor ONLY, Not waterproof

4. Application filed: supermarket, shopping mall, store, etc.

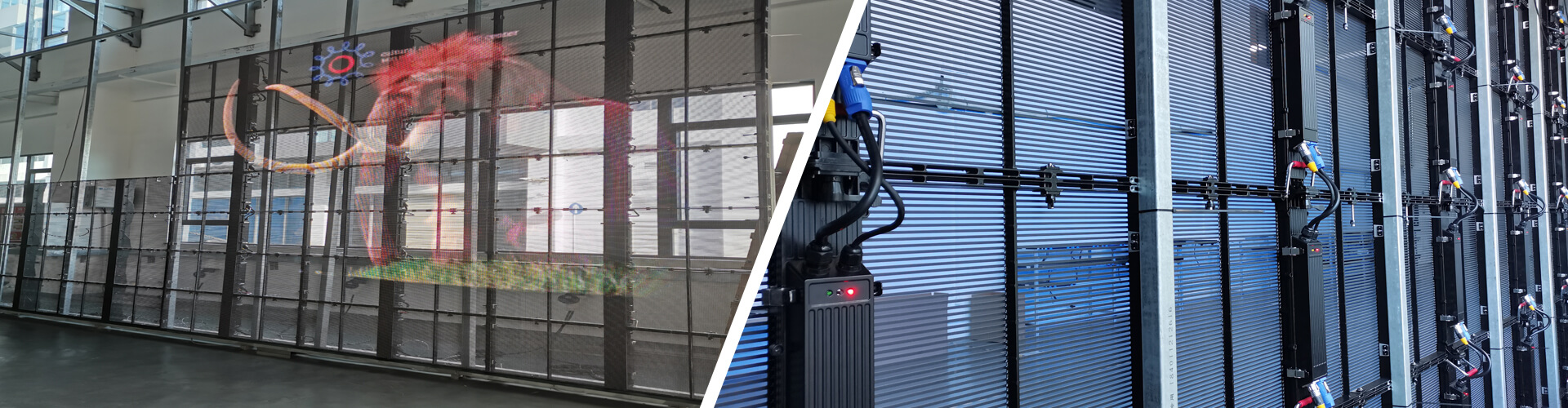

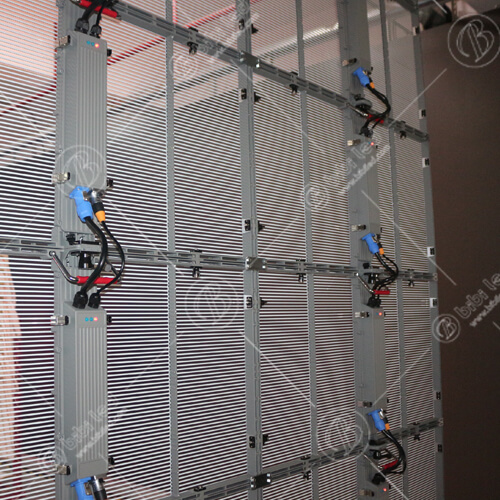

Recently done project

Configuration

1. Pixel pitch: 5.2-10.4mm.

2. Screen Size: 5m(W) x 2m(H).

3. Screen pixels: 960(W) x 192(H)

4. Destination: Korea.

5. Total cost: $18,300.

6. Application: Store window.

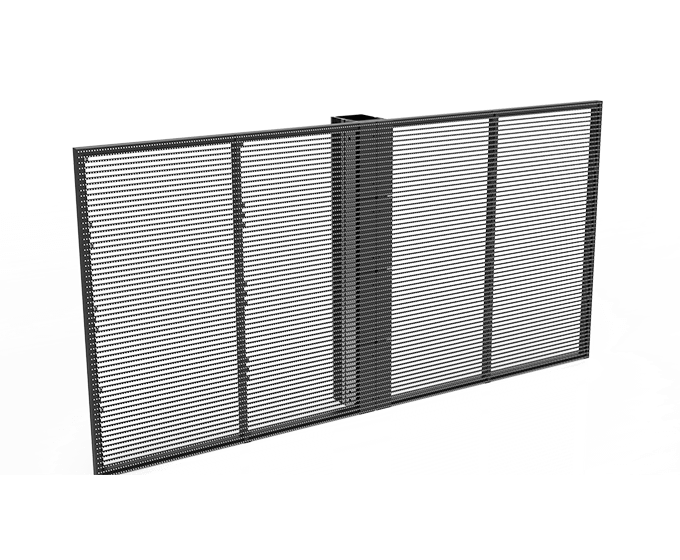

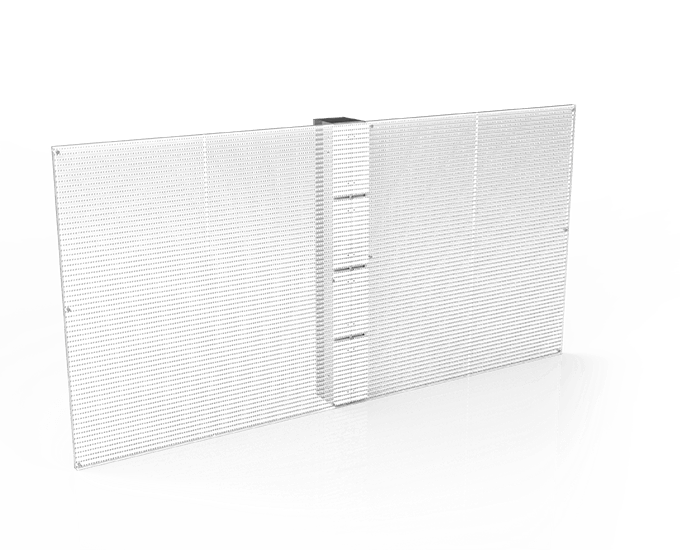

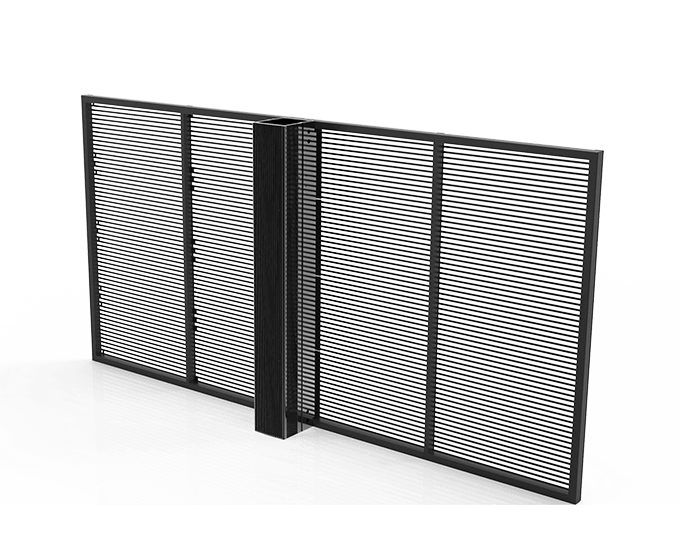

LED transparent LED screen Parameters

ITEM UNIT G4 G5 G8 G10
Pixel Pitch mm 3.91×7.8 5.2×10.4 7.8×7.8 10.4×10.46
Pixel Density dot/㎡ 32,768 16,384 9,216 4,096
Pixel Composition N/A 3 IN 1 SMD
Best view distance in/mtrs 158/4 196/5 315/8 395/10
Module Size in/mm 19.68×4.72/500×120
Cabinet Size in/mm 19.37Wx19.68H/1000Wx500H
Cabinet Weight kg/pound 6.4/14
Cabinet Resolution dots 256×64 192×48 128×64 96×48
Transparency rate N/A >70% >70% >70% >80%
Driving Type Scan 1/16 1/10 1/8 1/8
Max Power Consumption N/A 400W/㎡
Ave. Power consumption N/A 160W/㎡
Module Maintenance N/A Back access
Ingress Protection N/A IP22, not waterproof
Brightness Nits 3000~5000
Refresh rate Hz 1920/3840
Digital Processing Bit 14
Gray Scale Level 16384
Colors Million 687
Color Temperature Deg.K 5,500-9,300 Adjustable
Brightness Control N/A 255
Contrast Ratio N/A 2000:1
Viewing Angle H Deg. 140
Viewing Angle V Deg. 140
AC Speration V AC90~264
Storage Tem. F/C 14 ~ 114F/-10C ~ +45C
Storage Humidity RH 10% ~ 80%
Operating Tem. F/C 14F ~ 114F/-10C ~ +45C
Operating Humidity RH 10% ~ 85%
Lift time(50% brightness) Hour 100,000
Installation Type N/A Fixed
Control Mode N/A Video Sync

Transparent LED Display: The Ultimate Guide

Chapter 1 What is a transparent LED display?

Transparent LED display screens are basically LED display devices that allows the audience to see what is shown on the glass screen, while still being able to see through it (otherwise called a see-through screen).

The technology used for this kind of display screen has been around for more than 20 years already, but has only recently been used by companies in consumer products.

There are basically two types of transparent LED display devices, the LCD and LED. LCD is the older version while the LED is the newer one.

The absorptive nature of the LCD transparent display makes it different with LED or OLED transparent display, which is more of an emissive nature.

An LCD transparent display screen will impose a pattern of shading and colors on the background, while the OLED systems will impose a glowing image pattern on the background.

That’s the difference in how those two types work.

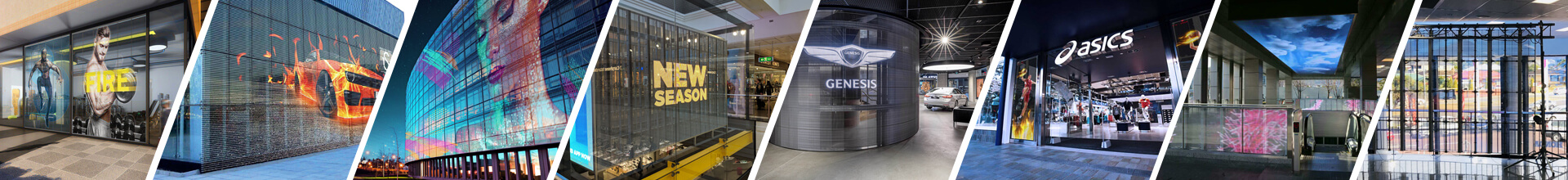

Chapter 2 Transparent LED Display Application

The application for this type of technology can be classified into three categories: event/entertainment stages, retail and augmented reality. Let’s talk about each category.

Retail – this is the most common application of transparent LED display screens. You often see this in store windows in malls.

It shows ads or other relative information like special deals, new product releases and other discount information. This is pretty common in new shopping malls.

The reason is, the technology for this type of display has become more affordable in the past few years.

Event/Entertainment Stages – another common use of this type of display screen is during events. Event producers or stage designers use a transparent LED display on the stage to more creativeness.

Because of the holographic-like visual effect that this type of display screen produce, it will send a very immersive experience to the audience. Plus, it adds a bit of flair to the event.

Augmented Reality – a relatively new field but transparent LED display screens have already been used for it.

There are a lot of scenarios where a transparent screen can come in handy in augmented reality. One example is the use of a transparent tablet.

By using some sort of app, the screen can overlay the name of the street onto the screen of the tablet. That’s just one example. There are virtually limitless possibilities.

Chapter 3 Difference Between Transparent LED Display and Normal LED Display

In theory, both types of display screen are using the same kind of technology. But there are differences. Here are things that make the two different from each other:

  1. High permeability – A transparent screen is much more permeable compared to a normal LED screen.

    That means the transparent LED screen can be made to be as thin as possible and still be able to display the needed lighting effects.

    This also means that it won’t be affected by the viewing line of sight.

  2. Lightweight and small footprint – due to the nature of how it functions, a transparent screen is naturally light in weight and will not take up a lot of space.

    The type of materials that are being used generally affects this factor.

  3. Beautiful installation and low cost – this type of screen can be used to produce a wonderful effect on screen.

    A simple web search can show you how this type of display screen is used. We guarantee you will be amazed by what you see. Best of all, it doesn’t cost a lot to install.

  4. Easy and fast maintenance – Since the device itself is so thin, you won’t have a hard time doing maintenance procedures.

    Compared to the maintenance procedures of normal LED screens, this one will be a breeze.

  5. Energy saving – the beauty about transparent LED screens is that it is very energy efficient.

    It doesn’t consume a huge amount of electricity. Although the same can be said about normal LED screens, the difference between the two are still significant.

Chapter 4 4 ways to Install a Transparent LED Display

There are four basic ways to install a transparent LED screen. Here they are.

Pasting

This method will involve pasting the LED module directly on the glass with UV glue.

  1. First thing you have to do is to clean the glass surface of the LED module to be installed. Make sure there are no dust and water on the glass surface.
  1. Next, you need to calculate the space of the location where you need to install the module.
  1. Then apply the glue provided by the manufacturer on the four support blocks of the LED module.
  1. Once you’ve finished that, then install the glued LED module on the glass in the correct position and hold it by hand.
  1. Then switch on the UV lamp and use it to illuminate the small square for about 10 seconds to cure the glue.
  1. Afterwards, install the LED curtain wall screen module in order according to steps 3 to 5.
  1. Lastly, place the power supply and data cable and lock the cable slot to the LED module with the screw lock.

Locked on the Glass Curtain Wall Frame

To lock the transparent screen on to the glass curtain wall frame, just place the square tube of the LED curtain wall panel directly using the screws on the frame of the glass curtain wall. That’s how simple it is to do.

Locked on the Glass Curtain Wall Frame(Flushed with the Back of the Frame)

  1. The first thing you need to do is use the screw to lock the LED module on the line slot to make the assembly A.
  1. Then screw the wire groove of the upper step and the square tube together to form the assembly B.
  1. Next, lock the fixing bracket to the frame on the glass curtain wall with the screws provided.
  1. Lastly, screw the assembly B to the fixed bracket lock.

Installing on a Claw Point Glass Curtain Wall

  1. The first step is to use the screw to lock the LED module on the line slot to make the assembly A.
  1. Then screw the wire groove of the upper step and the square tube together to form the assembly B.
  1. Next, connect the screws, nuts, and connecting plate B to the connecting claws of the square tube glass curtain wall.
  1. Once you’ve finished that, then lock the component B to the square tube B with a screw. Then you’re all done.

Take note that you can customize the size of the LED module according to the size of the glass.

Chapter 5 How to Choose the Right Transparent LED Display?

Choosing the right transparent LED display is very straightforward, as long as you know how to choose properly. Here’s how.

  1. Choose the right amount of brightness. This is an important factor when you are shopping for a transparent screen.

    A transparent LED screen that is too bright can cause discomfort to anyone watch. If brightness is also lacking, the viewers won’t be able to see a clear picture.

  2. Consider the pixel pitch of the transparent LED screen you will be buying.

    This is the factor that affects the transparency of the screen. Keep in mind that the higher the pixel pitch, the less pixel density it has, but it becomes more transparent. It will also result in a lower resolution. A low pixel pitch on the other hand, is the opposite.

  3. Consider the viewing angle and distance where the screen will be placed. Before you buy one, you should already have a plan on where to place the transparent list.

    That way, you can figure out the optimum viewing distance and angle to where it will be viewed from. This will also guide you on the right amount of pixel pitch to choose. The viewing angle affects the transparency of the screen. Keep that in mind.

  4. Decide whether you want to go for a higher or lower resolution. The good thing about going for a higher resolution screen is that the images will be much more detailed.

    The problem is, it will be more expensive and will have a higher maintenance cost. We recommend that you the determining factor will be how much resolution will you need to display the images properly. Ultimately, it will be your preference that will dictate this decision.
