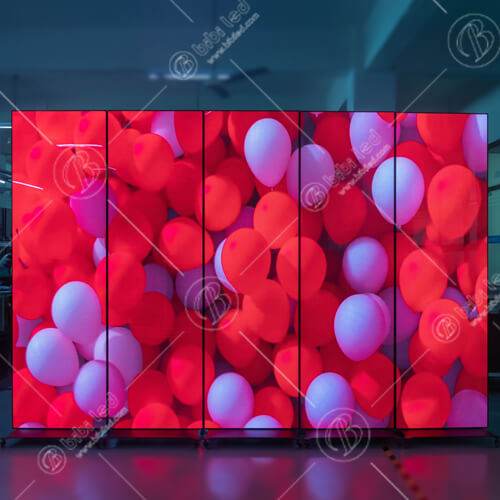

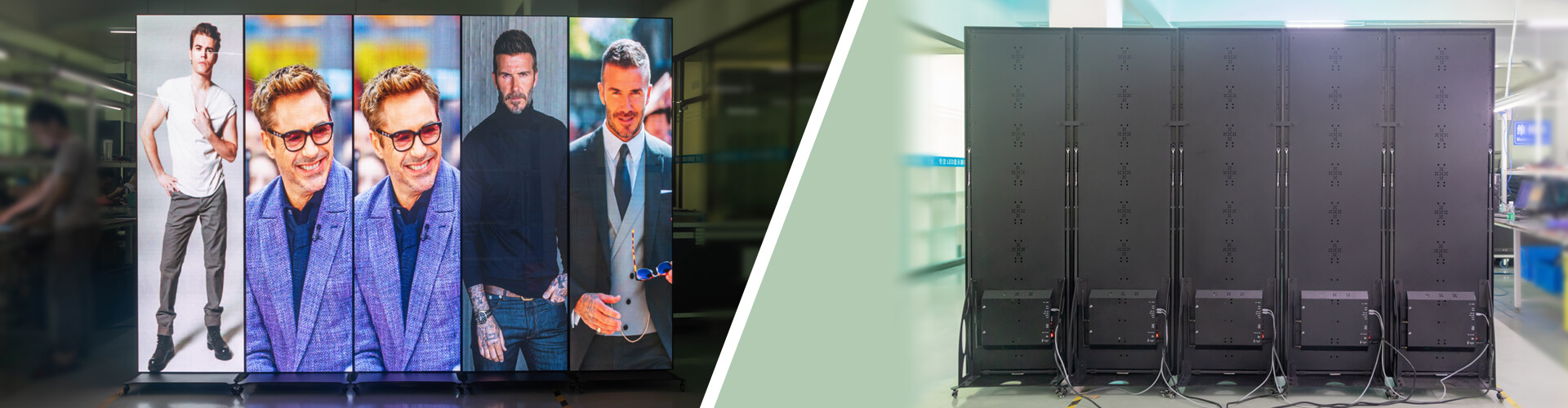

Poster LED Display

Key features

1. Pixel pitch: 1.875/ 2.3.

2. Cabinet Size: 600×337.5x39mm.

3. Material: Die-casting aluminum.

4. Installation environment: Indoor.

5. Refresh rate: 3840.

6. Application: High-speed train, airport, Sales will, education, hotel, mobile phone shop, Auto 4S shops, etc.

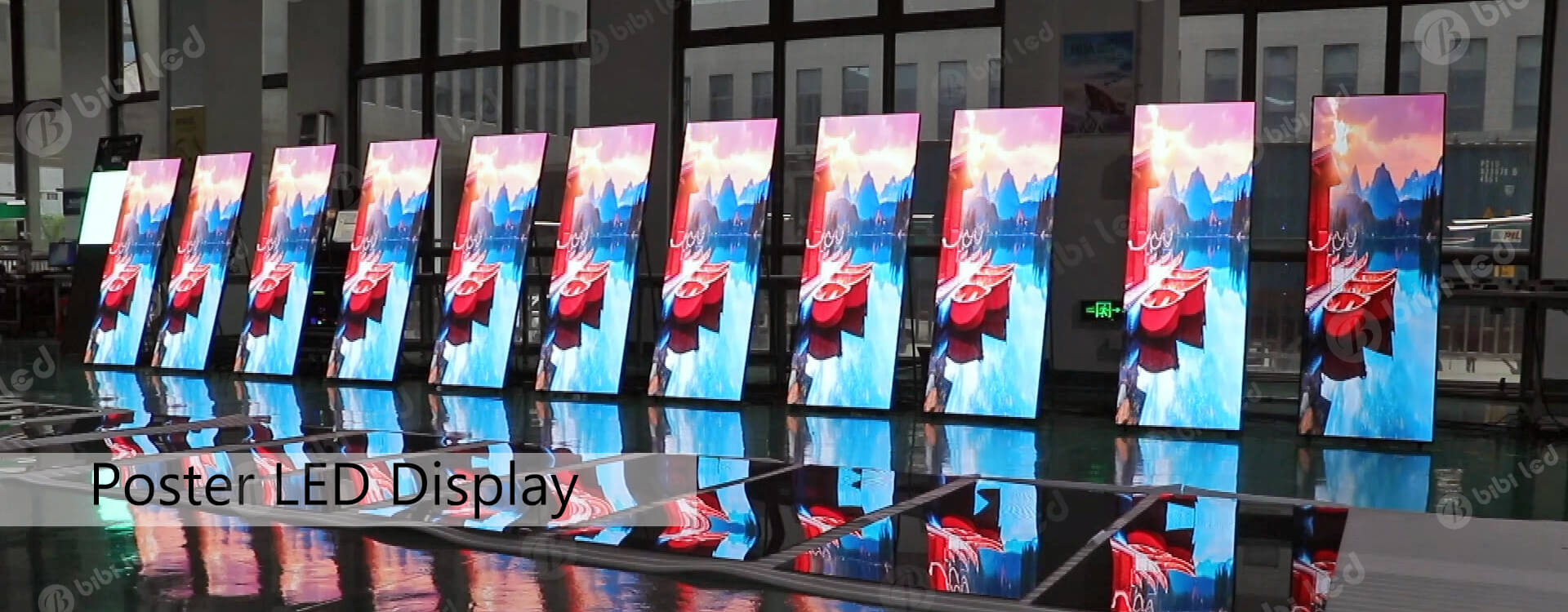

Recently done project

Configuration

1. Pixel pitch: 1.875mm.

2. Screen Quantity: 11pcs.

3. Destination: Albania​.

4. Application: TV station.

Poster LED Screen Parameters

ITEM UNIT 1.875 2.3
LED Type N/A SMD1515 SMD2020
Pixel Pitch mm 1.875 2.3
Ingress Protection IP 31 31
Viewing Distance in/meter 74/1.875 90/2.3
Driving Type Scan 1/30 1/24
Screen Dimension mm 600×2025/600×1687/600×1350

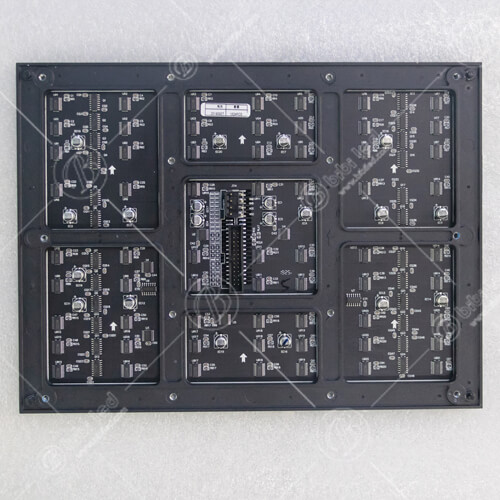

Module maintenance N/A Front service
Cabinet Material N/A Die-casting aluminum
Cabinet Weight KG 30/25/20
Brightness Nits 800 800
Refresh rate Hz 3840
Digital Processing Bit 16
Gray Scale Level 16384
Colors Million 687
Color Temperature Deg.K 3,200-9,300 Adjustable
Brightness Control N/A 255
Contrast Ratio N/A 5000:1
Viewing Angle H Deg. 140
Viewing Angle V Deg. 140
AC Speration V AC90~264
Power Consumption(Max/Avg) W/m2 800/250
Storage Tem. F/C -40 ~ 140F/-40C ~ +60C
Storage Humidity RH 10% ~ 90%
Operating Tem. F/C -4F ~ 122F/-20C ~ +50
Operating Humidity RH 10% ~ 90%
Lift time(50% brightness) Hour 100,000
Installation Type N/A Stack, Hanging, Fixed
Control Mode N/A Video Sync/ Async

Poster LED screens: The Ultimate Guide

Chapter 1: What is a Poster LED Screen?

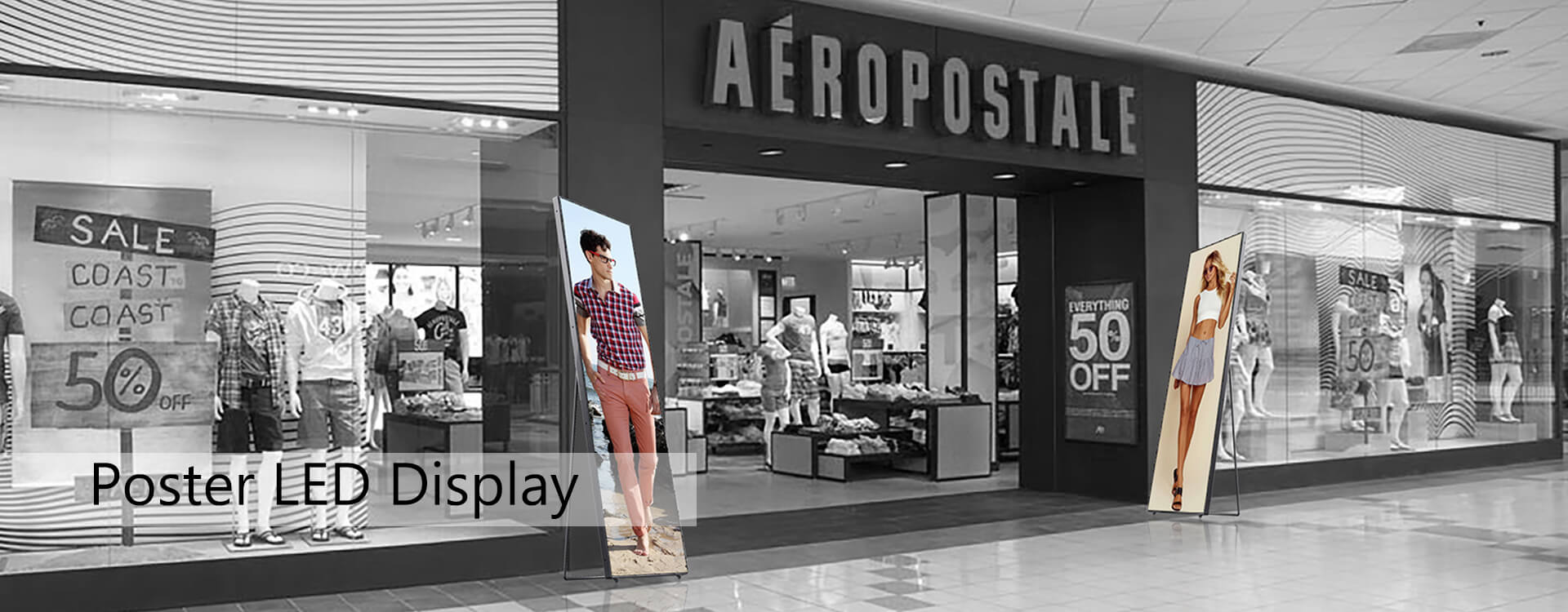

Have you seen a poster LED screen? This is a common sight in shopping malls. Basically, a poster LED screen or “static screen” is as it is more popularly known, is a type of display device that is mainly being used for advertising purposes.

Its initial design was to display a static picture in the form of timing switching. But it has then evolved and is now capable of displaying videos as well.

There is even a more advanced version of this. Did you know that there are already LED display screens built that are able to access the internet?

Since the introduction of cloud servers, users can already use their mobile phone, tablet, computer or other data terminals to process the data information through the cloud server.

This allows them to access the data in the cloud server and then push the content to the LED screen display anytime and anywhere. That’s how convenient it is nowadays.

That technology is already implemented in LED poster screens. These screens are capable of display HD images and videos and have 3840Hz refresh rate.

It also has a 140 degree wide view angle and have the capability to be spliced into multiple screens without an edge line. These lightweight and slim LED displays can always be easily moved. That’s the beauty of this type of display screen.

Chapter 2: Poster LED Screen Applications

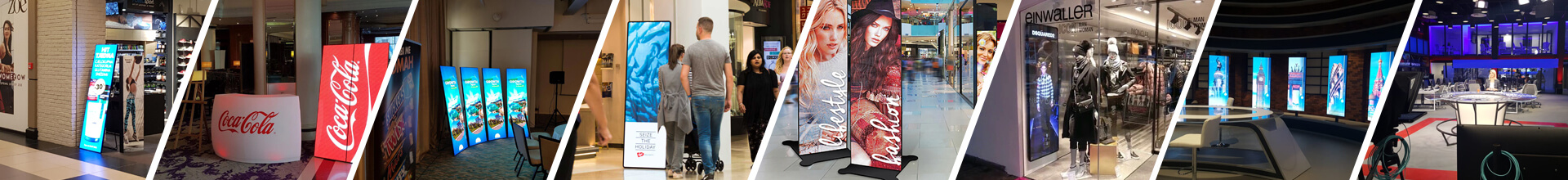

As mentioned above, these LED poster screens are used for advertising. That’s why you commonly see them in these places:

  1. Shopping mall
  2. Theaters
  3. Hotel
  4. Airport
  5. High-speed rail stations
  6. Store windows
  7. Expo and exhibit venues
  8. Brand stores
  9. Performance venues
  10. Large-scale conference rooms

You normally see them in shopping malls displaying the latest products that were unveiled or any information about their promos and discounts.

They are also being used in theaters, specifically outside the theaters. They usually display a few scenes of the movie that is currently being shown so that they can either capture the attention of potential audiences or inform people what type of movie is currently showing.

Another common place you see LED poster screens is in airports. Now the use for these devices isn’t normally for commercial purposes.

Instead, these display devices are used to display flight information. You will normally see flight arrivals and departures in these display screens.

It’s a bit different from the normal commercial application, but still comes in pretty useful.

The same can be said in high-speed rail stations. Just like in airports, poster LED screens are also being utilized to show the train schedule for the day.

Although some of these screens are also being used to display ads, but mainly, you will see them displaying train schedules.

As you can see, these LED screens have two main uses. They either be for commercial or informative use.

They are used for commercial purposes when they display ads of specific brands.

They become informative display devices when they are being used to display important information like train schedules, plane departures and arrivals or even store discounts and promos.

Chapter 3: Poster LED Screen Advantages

Using this type of LED screen does have its own benefits. Aside from what was mentioned above wherein you will have the ability to control what will be displayed in the screens even though you are in another part of the world (cloud technology), there are also other advantages that it brings to the table (some more obvious than others).

  1. As you’ve already noticed, poster LED display screens are lightweight. This makes it very easy to move around or place on a different location. If you are planning to rent it out, you won’t have a hard time transporting it to and from the location.
  2. It is also very easy to use that is it is virtually a plug and play device. Plus, it has the “mirror screen” feature that makes it easier for the user to display a more eye-catching image or video.
  3. Color and sharpness is very evident especially when used in quiescent state.
  4. You will be able to control static images a lot better, thereby allowing you to avoid fast or slow image change.

Apart from these advantages, what makes the poster LED screen really a very attractive option is its intelligent cloud remote control system, which will allow you to publish content anytime and anywhere. You simply can’t find that in other display devices.

Chapter 4: How To Install A Poster LED Screen

There are several ways to install an LED poster screen. The most popular one is also the easiest to install.

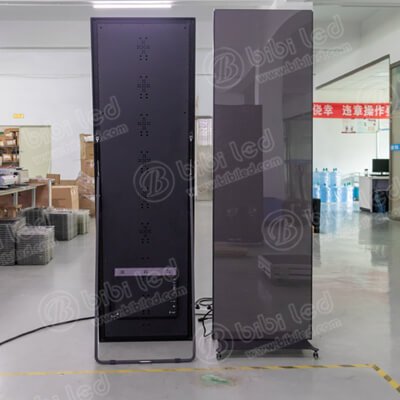

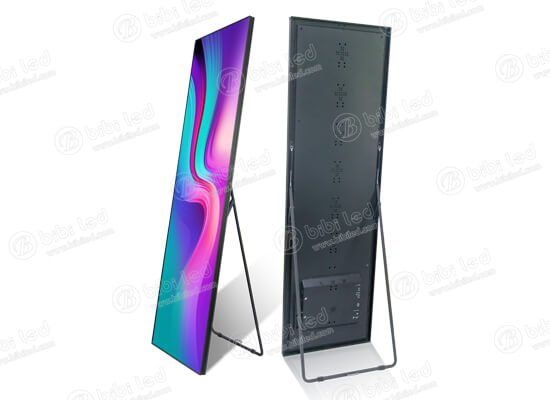

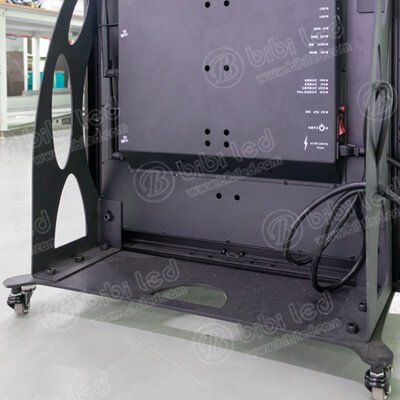

The floor standing method is basically just like setting up a picture frame, only it is a much bigger picture frame.

All you have to do is lock the LED panels into the frame using the locking mechanism provided upon purchase.

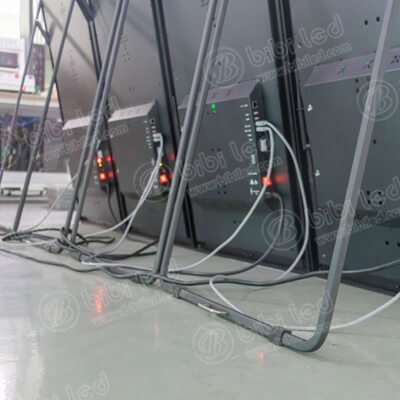

After doing that, you can then setup the stand so that the poster LED screen can be propped up.

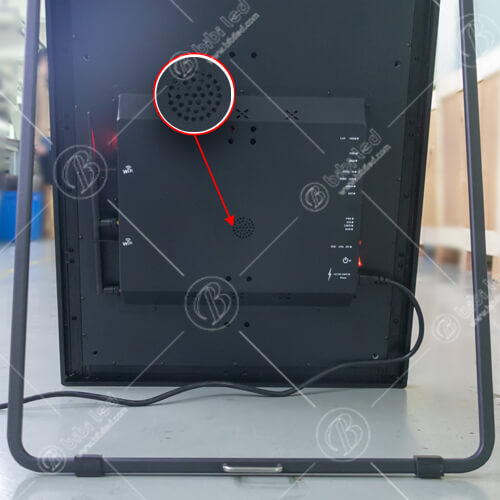

All that’s left to do is set it up according to how you will want to control it. If it will be using the cloud, it has to be connected to the internet via 3G/4G.

If you want the screen to be lifted upwards instead of it standing on the floor, you will need some sort of mount that you have to attach at the back of the poster screen.

The procedure is almost the same as the floor standing type. You have to attach the LED panel to the frame.

Then, attach the mount to the back of the panel and connect it to the beam where it will be lifted above the ground. Of course, locking mechanisms will be provided when you use the mount.

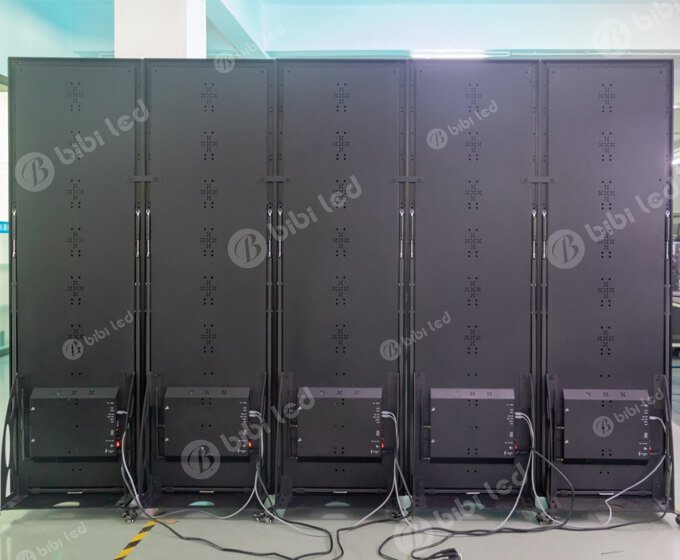

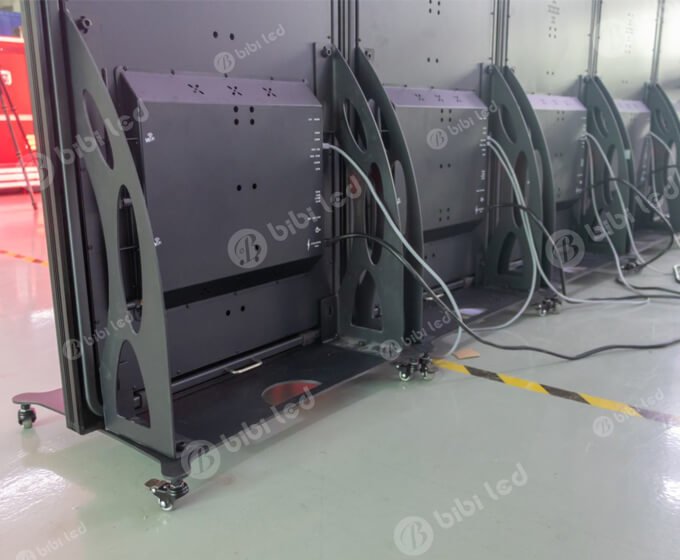

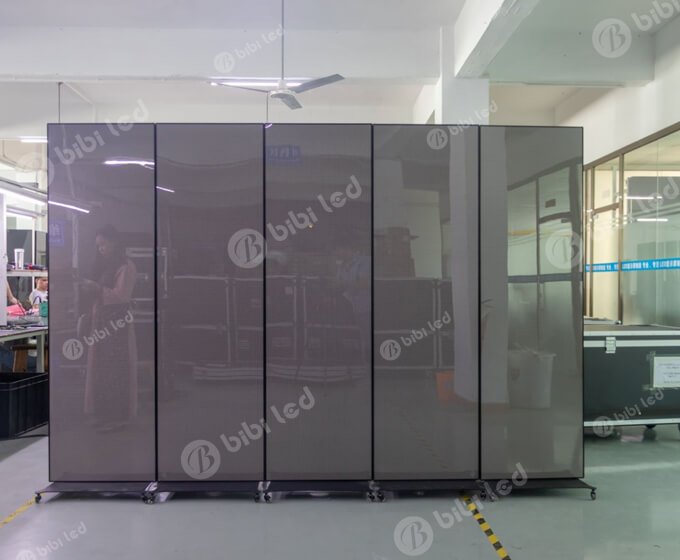

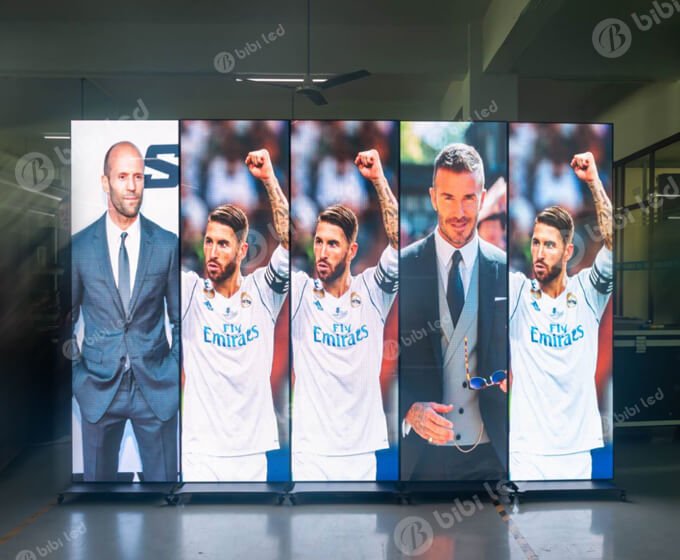

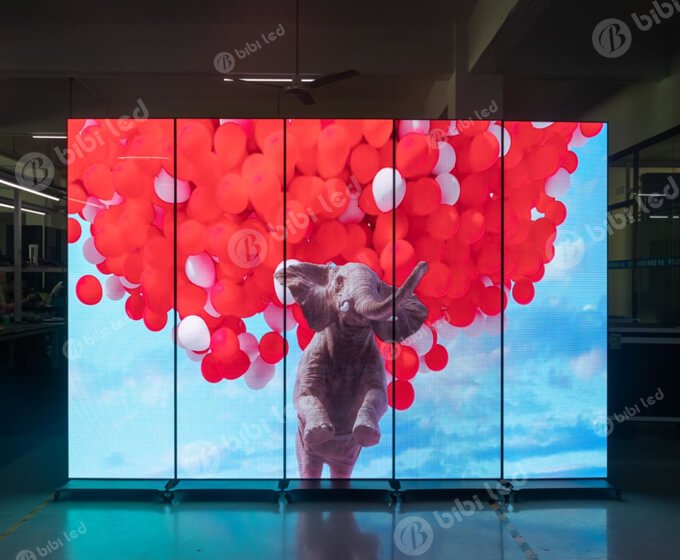

Multi-screen and creative screen installations are more or less the same.

You will need to join the poster panels together either by hanging them or propping them up on the ground, and display as one big video or image content by several single poster led screen.

The trick is to setup the panels to act as one main screen. You will be able to achieve that by using a specific software that will allow you to control the images that will be displayed.

There are several software available on the market today that will allow you to do that.
