Perimeter LED Display

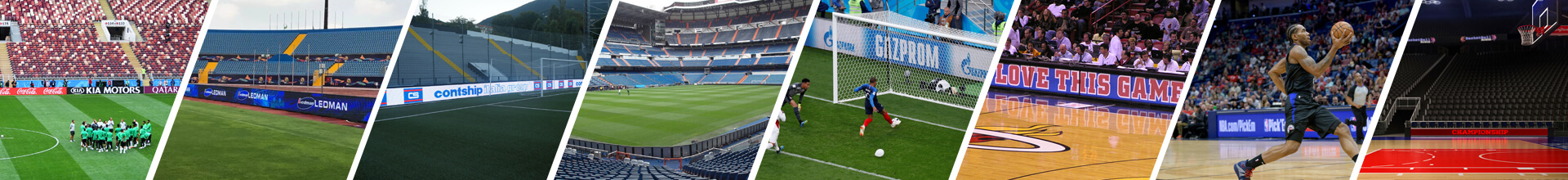

The perimeter LED display is used in stadium fencing advertising, and an information display can display any length of strip advertising. Each LED cabinet has individual support legs for independent support behind the cabinet, and the soft mask and top impact cushion prevent sportspeople from hitting the LED screen.

Get a quote NOW

Quickly get 2021 New Price!

FS Series Quality Inspection Video

Quality not only means excellence but also reliability

Play Video

Perimeter LED Display Screen

FS Series is a perimeter LED screen display used for sports games advertising.

It has a specific soft mask, soft top cover, and back support to make it in one raw and long width design.

FS Series is the right one to choose if you need stable installation with a heavy steel cabinet.

Product Features

Pay your cost for the details

Soft Mask

Considering the speed and impact of the players, soft mask covers on the surface of the LED displays to protect the players

Top Protect Rubber

Top protect rubber of the cabinet to protect the players just in case if the players hit the perimeter LED screen with any hurt

Back Support

Each cabinet has back support, it is able to make the LED screen stand without the structure on the ground to have a better view

Fast Connector

With the power and data connectors, the perimeter LED screen could set up more quickly during the sports game event

Friendly Tips: To ensure that you could make the correct solution of our FS Serice perimeter LED display.

Please continue to read the following introduction and download our specification.

Can’t find what you are looking for? Contact us.

Your email will be responded to within 1 business day.

Specifications

ITEM UNIT P8 P10
Pixel pitch mm 8 10
LED type N/A SMD 3 in 1
Pixel density pixels/m2 262144 147456
Module size(WxH) mm 320×160
Module resolution pixels 40×20 32×16
Cabinet size mm 1280×960/ 960×960
Cabinet resolution pixels 160×120/ 120×120 128×96/ 96×96
Driving method N/A 1/5 1/2
Material N/A Steel/ Aluminum
Weight kg/m2 55/ 45
Brightness nits 5500 ~ 7000
Rrefresh rate hz ≥3840
Gray scale bit ≥14
Colour temperature Deg.K 3,200 ~ 9,300
Brightness control N/A 255
Contrast ratio N/A 3000:1
Video angle H deg. 140
Video angle V deg. 140
Input AC operation volt AC90~264
Power consumption(Max/Avg) w/m2 860/320
Storage tem. F/C -4 ~ 140F/-20C ~ +60C
Storage humidity RH 10%~85%
Life time(50% brightness) hour 100,000
Input signal N/A DVI, HDMI, VGA, S-video, etc
