Outdoor advertising screen

Get the 2020 NEW Price NOW!

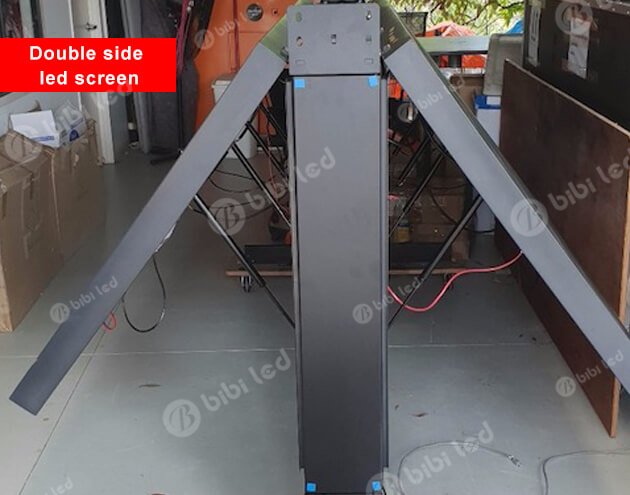

Double Sided LED Display

Key features

1. Pixel pitch: 3.33/ 4/ 5/ 6/ 8/ 10.

2. Brightness: 5500-8500nits/m2.

3. Material: Steel/ Aluminum.

4. IP rate: IP65 front, IP54 back.

5. Maintenance way: Front service.

6. Application: Outdoor commercial place, supermarket, shopping mall, bank, hotel, etc.

Double Sided LED Display Specifications

ITEM UNIT 3.33 4 5 6 8 10SMD 10DIP
LED Type N/A SMD1921 SMD1921 SMD2727 SMD3535 SMD3535 SMD3535 DIP346
Pixel Pitch mm 3.33 4 5 6 8 10 10
Ingress Protection IP IP65 front/ IP54 back
Viewing Distance in/meter 131/3.33 158/4 196/5 236/6 315/8 394/10 394/10
Driving Type Scan 1/12 1/8 1/8 1/8 1/4 1/2 1/4
Module Dimension in/mm 12.6×6.3/ 320×160 10×51/ 256×128 12.6×6.3/ 320×160 7.56×7.56/ 192×192 10×51/ 256×128 12.6×6.3/ 320×160 6.3×6.3/ 160×160
Module Pixel Pixel 96×48 64×32 64×32 32×32 32×16 32×16 16×16
Cabinet Dimension in/mm Customized/ Multiply by the size of led modules
Cabinet Resolution Pixel Customized/ Multiply by the resolution of led modules
Module Maintenance N/A Front access
Cabinet Material N/A Steel/ Aluminum
Cabinet Weight KG 55/ 45KG/m2
Brightness Nits 5000~7500
Refresh rate Hz 1920/3840
Digital Processing Bit 14/16
Gray Scale Level 16384
Colors Million 687
Color Temperature Deg.K 4,500-8,500 Adjustable
Brightness Control N/A 255
Contrast Ratio N/A 4000:1
Viewing Angle H Deg. 140
Viewing Angle V Deg. 140
AC Speration V AC90~264
Power Consumption(Max/Avg) W/m2 800/250 ( Estimate )
Storage Tem. F/C -4 ~ 140F/-20C ~ +60C
Storage Humidity RH 10% ~ 85%
Operating Tem. F/C -4F ~ 140F/-20C ~ +60
Operating Humidity RH 10% ~ 85%
Lift time(50% brightness) Hour 100,000
Installation Type N/A Fixed
Control Mode N/A Video Sync

Get Your Double Sided LED Display Price NOW
